BMW 5 Series G30 2016-2024 Training Manual / Powertrain / Cooling / Gasoline engines

B468/B58 Engine

The B46/B58 engines have two separate coolant circuits. The coolant in the low-temperature coolant circuit to cool the charge air. The coolant in the high-temperature coolant circuit to cool the engine.

The two coolant circuits each have their own expansion tank.

Gasoline engines

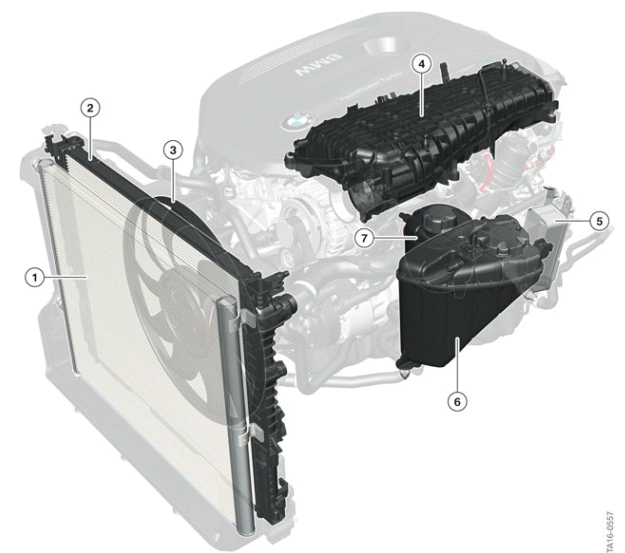

Overview of the components of the cooling system B46/B58 engine in the G30

  1. Low-temperature radiator
  2. High-temperature radiator
  3. Fan
  4. Charge air cooler (integrated in the intake pipe)
  5. Transmission oil-to-coolant heat exchanger
  6. Expansion tank, low-temperature circuit
  7. Expansion tank, high-temperature circuit

N63TU2 Engine

Gasoline engines

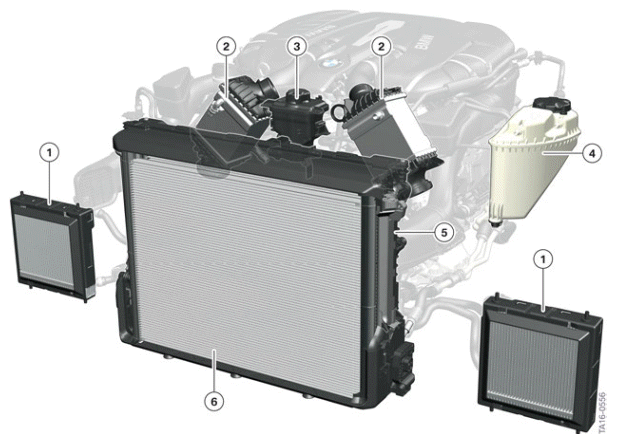

Overview of the components of the cooling system N63TU2 engine in the G30

  1. External radiator (high-temperature coolant circuit)
  2. Charge air cooler (indirect charge air cooler)
  3. Expansion tank, low-temperature circuit
  4. Expansion tank, high-temperature circuit
  5. Radiator high-temperature coolant circuit
  6. Radiator low-temperature coolant circuit
