BMW 5 Series: Fuel Supply

BMW 5 Series G30 2016-2024 Training Manual / Powertrain / Fuel Supply

Gasoline engine

Gasoline engine

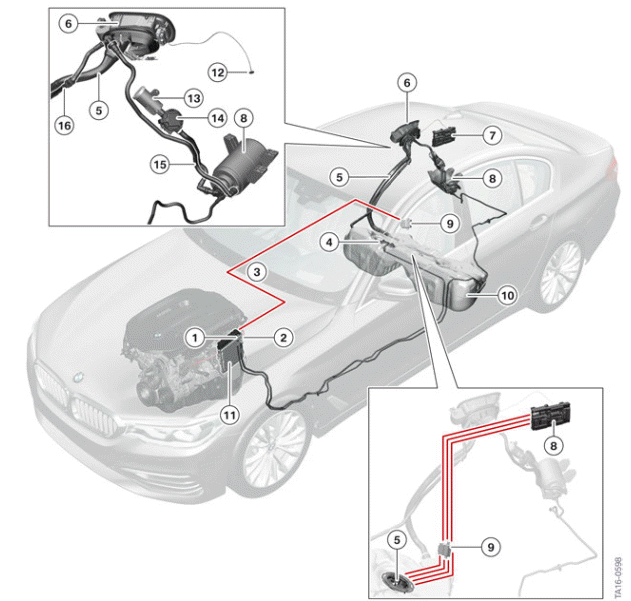

System overview of the gasoline engine fuel supply in the G30

  1. Purge air line, carbon canister
  2. Fuel feed from fuel tank
  3. Data line to fuel pump control module
  4. Delivery unit
  5. Fuel filler neck
  6. Fuel filler flap
  7. Rear right power distribution box
  8. Carbon canister
  9. Fuel Pump Control (FPC)
  10. Fuel tank
  11. Digital Motor Electronics (DME)
  12. Emergency release
  13. Fresh air filter
  14. Tank leak diagnosis (NVLD)
  15. Ventilation line, carbon canister
  16. Tank ventilation line
