BMW 5 Series G30 2016-2026 Training Manual / B58TU Engine / Fuel System

Fuel preparation

The fuel preparation has been modified to meet the requirements of emission legislation. The high pressure pump and the injectors have been revised and designed for a fuel injection pressure of 350 bar.

Fuel preparation

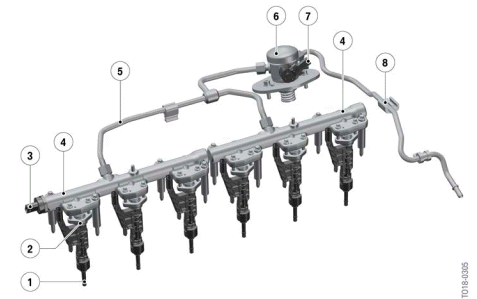

Fuel preparation, B58TU engine

  1. Injector
  2. Holding clamp
  3. Rail pressure sensor
  4. Rail
  5. High-pressure line
  6. High pressure pump
  7. Quantity control valve
  8. Fuel feed line

Strict cleanliness must be observed when carrying out any work on the fuel system!
