BMW 5 Series: Ambient lighting

BMW 5 Series G30 2016-2024 Training Manual / General Vehicle Electronics / Interior Lighting / Ambient lighting

The ambient lighting includes 6 predefined, selectable light designs.

Adjust the lighting design and the brightness with the controller. The selected design is displayed on the CID.

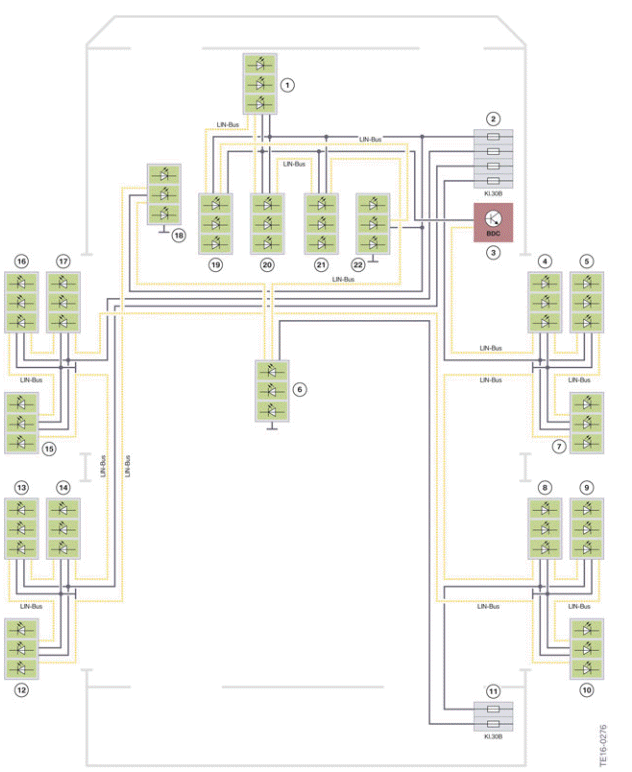

System wiring diagram

Ambient lighting
Interior lighting, ambient lighting

  1. Ambient lighting, instrument panel, passenger's side
  2. Fuses in the power distribution box, front right
  3. Body Domain Controller (BDC)
  4. Lighting for door storage compartment, passenger's side
  5. Door trim panel lighting, passenger's side
  6. Lighting, center stack
  7. Door contour lighting, passenger's side
  8. Lighting for door storage compartment, passenger's side rear
  9. Door trim panel lighting, passenger's side rear
  10. Door contour lighting, passenger's side rear
  11. Fuse in the power distribution box, rear right
  12. Door contour lighting, driver's side rear
  13. Door trim panel lighting, driver's side rear
  14. Door storage compartment lighting, driver's side rear
  15. Door contour lighting, driver's side
  16. Door trim panel lighting, driver's side
  17. Door storage compartment lighting, driver's side
  18. Footwell light, front left
  19. Contour lighting, instrument panel, driver's side
  20. Contour lighting, instrument panel, passenger's side
  21. Contour lighting, instrument panel, passenger's side
  22. Footwell light, front right

RGB (Red, Green and Blue) LED modules are used for the ambient lighting.

The lighting for the ambient interior lighting is controlled via a separate LIN bus. The individual LED modules are connected via a local interconnect network bus. The LED modules are connected in series to the LIN bus around the vehicle.

If the LIN bus is interrupted at a certain point or the micro controller on the LED is faulty, then further light transmittance is interrupted at this point. A search for the fault must be carried out at the location where the last LED illuminates.

Light Effect Manager

On a vehicle with a Bowers & Wilkins audio system, the actuation of the lighting of the speaker trims is implemented via the Light Effect Manager.
