BMW 5 Series: Bus overview

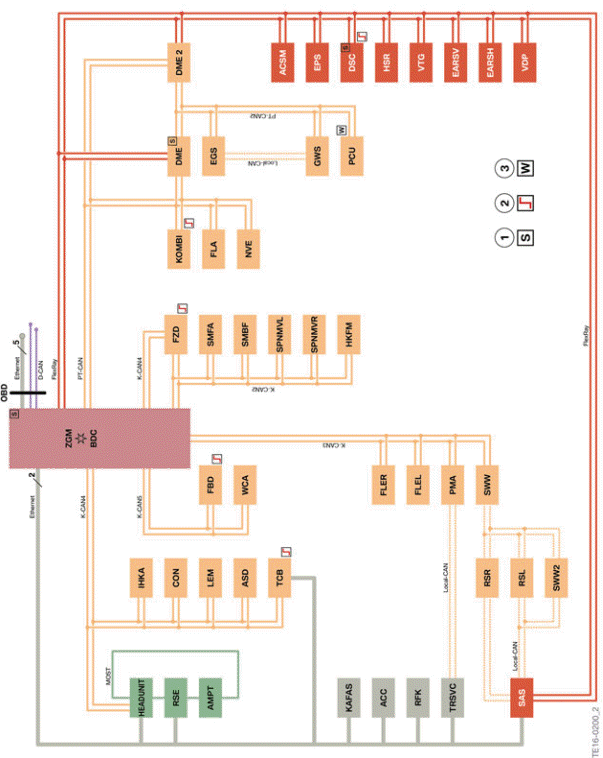

Bus overview
Bus overview

ACC - Active Cruse Control also known as Long Range Radar sensor (LRR)
ACSM - Advanced Crash Safety Module
AMPT - Top HiFi amplifier
ASD - Active Sound Design
BDC - Body Domain Controller
CON - Controller
DME - Digital Motor Electronics
DME2 - Digital Motor Electronics 2
DSC - Dynamic Stability Control
EARSH - Electric active roll stabilization rear
EARSV - Electric active roll stabilization front
EGS - Electronic transmission control
EPS - Electromechanical Power Steering
FBD - Remote control receiver
FLA - High-beam assistant
FLER - Frontal Light Electronics Right
FLEL - Frontal Light Electronics Left
FZD - Roof function center
GWS - Gear selector
HEADUNIT - Head Unit
HKFM - Trunk function module
HSR - Rear axle slip angle control
IHKA - Integrated automatic heating / air conditioning
KAFAS - Camera-based driver support systems
KOMBI - Instrument panel
LEM - Light Effect Manager
NVE - Night Vision Electronics
PCU - Power Control Unit
PMA - Parking Maneuver Assistant
RFK - Reverse camera
RSE - Rear Seat Entertainment
RSL - Radar Sensor, Left (Evasion Aid)
RSR - Radar Sensor, Right (Evasion Aid)
SAS - Optional equipment system
SMBF - Seat module, passenger
SMFA - Seat module, driver
SPNMVL - Seat pneumatics module front left
SPNMVR - Seat pneumatics module front right
SWW - Lane change warning (primary) also known as the Short Range Radar Sensor (SRR)
SWW2 - Lane change warning (secondary) also known as the Short Range Radar Sensor (SRR2)
TCB - Telematic Communication Box
TRSVC - Top rear side view camera
VDP - Vertical Dynamic Platform
VTG - Transfer case
WCA - Wireless charging tray
ZGM - Central Gateway Module

  1. Start-up node control units for starting and synchronizing the FlexRay bus system
  2. Control units with wake-up authorization
  3. Control units also connected at terminal 15 WUP
