BMW 5 Series G30 2016-2024 Training Manual / Driver Assistance Systems / Parking Maneuvering Assistant / System wiring diagram

The system wiring diagram on the next page shows an overview of the system components used when parking and maneuvering the vehicle. Depending on the vehicle equipment, partial scopes may also be installed.

Parking Maneuvering Assistant

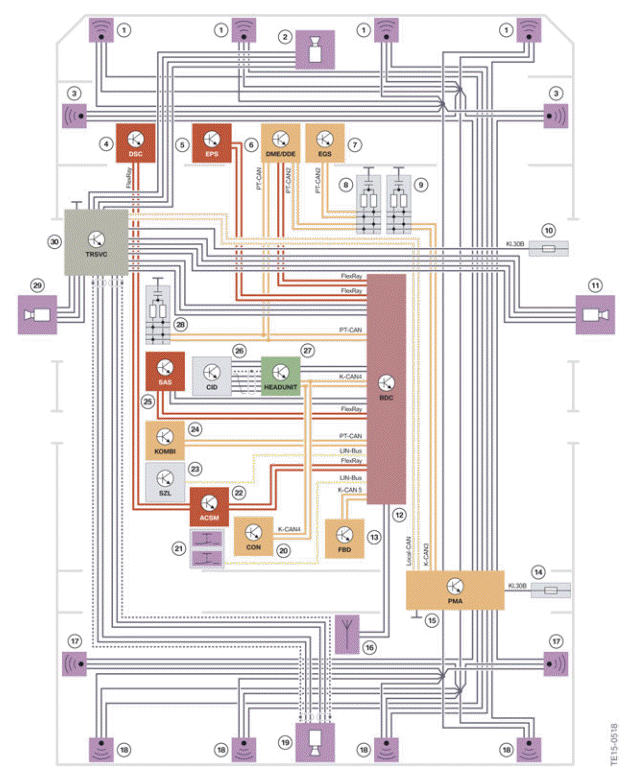

G30 Parking and maneuvering system wiring diagram

  1. Ultrasonic sensors for Park Distance Control, front
  2. Front camera
  3. Ultrasonic sensors for Parking Maneuvering Assistant (PMA)
  4. Dynamic Stability Control (DSC)
  5. Electronic Power Steering (EPS)
  6. Digital Motor Electronics (DME)
  7. Electronic transmission control (EGS)
  8. CAN terminator
  9. CAN terminator
  10. Fuse for front right power distribution box
  11. Right side view camera
  12. Body Domain Controller (BDC)
  13. Remote control receiver (FBD)
  14. Fuse for rear right power distribution box
  15. Control unit for Parking Maneuvering Assistant (PMA)
  16. Remote Control Parking aerial
  17. Ultrasonic sensors, Park Distance Control, rear side
  18. Ultrasonic sensors, Park Distance Control, rear
  19. Rear view camera (RFK)
  20. Controller (CON)
  21. Parking assistance button and button for camera activation
  22. Advanced Crash Safety Module (ACSM)
  23. Steering column switch cluster (SZL)
  24. Instrument panel (KOMBI)
  25. Control unit for Optional Equipment System (SAS)
  26. Central Information Display (CID)
  27. Head Unit High
  28. CAN terminator
  29. Left side view camera
  30. Top Rear Side View Camera (TRSVC) control unit

Control unit

In vehicles with the Parking Maneuvering Assistant, both the Park Distance Control and Parking Maneuvering Assistant functions are provided by the PMA control unit.

Parking Maneuvering Assistant

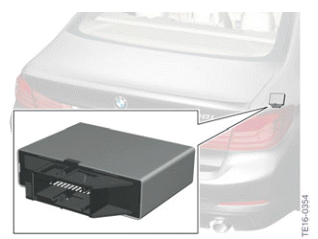

G30 Control unit for Parking Maneuvering Assistant (PMA)
