BMW 5 Series G30 2016-2025 Training Manual / Infotainment / Antenna System / Overview

The G30 has different antenna systems, depending on the optional equipment:

Antenna System

Antenna System

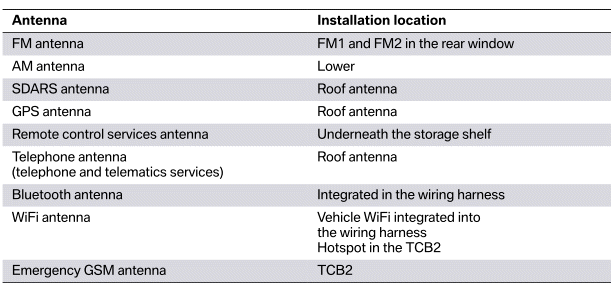

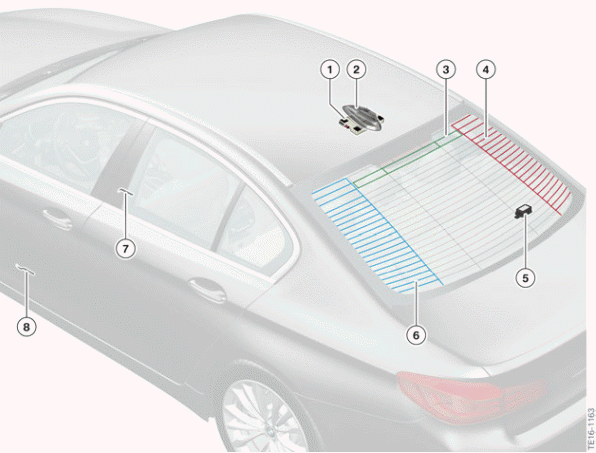

G30 Antennas overview

  1. Telematic Communication Box 2 (TCB2) (hotspot, emergency GSM antenna)
  2. Roof-mounted antenna (GPS antenna, telephone antenna, SDARS)
  3. AM antenna
  4. FM2 antenna
  5. Remote control receiver
  6. FM1 antenna
  7. Bluetooth antenna
  8. WiFi antenna

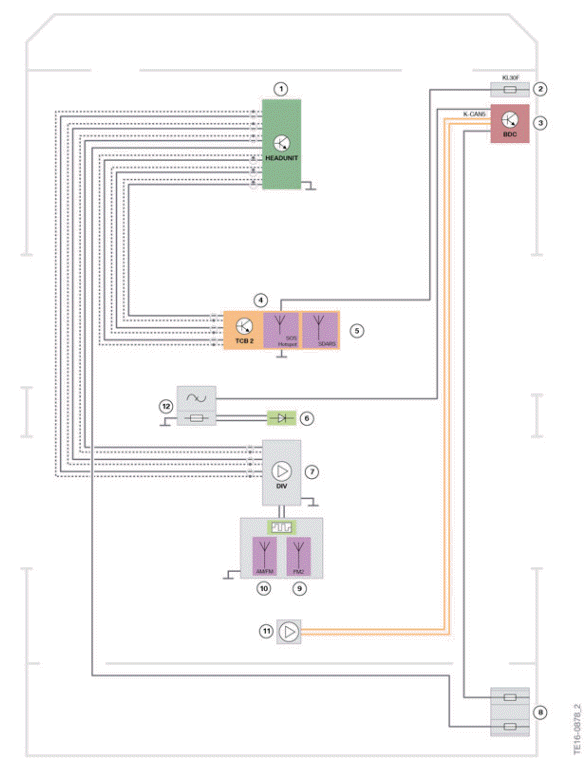

System wiring diagram antenna system multimedia

Antenna System
G30 antenna system multimedia

  1. Headunit
  2. Fuse for front right power distribution box
  3. Body Domain Controller (BDC)
  4. Telematic Communication Box 2 (TCB2) with integrated emergency GSM antenna
  5. SDARS antenna
  6. Additional brake light
  7. Antenna diversity module
  8. Fuses in the power distribution box of the luggage compartment
  9. FM2 antenna
  10. AM/FM1 antenna
  11. Remote control receiver
  12. Interference suppression filter

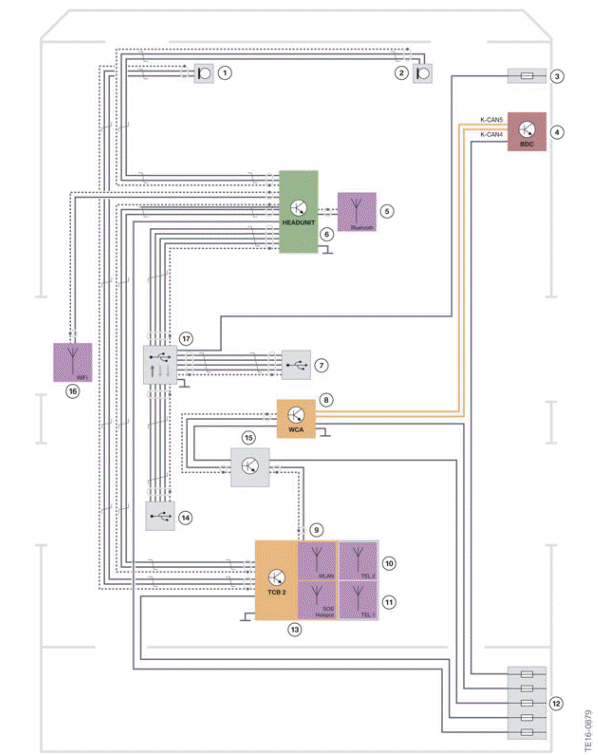

System wiring diagram antenna system telephone and telematics

Antenna System
G30 antenna system telephone telematics

  1. Microphone, driver's side
  2. Passenger's side microphone, in conjunction with the convenient telephone with enhanced smartphone connection (OE 6NS) or telephone with wireless charging (OE 6NW)
  3. Fuse for front right power distribution box
  4. Body Domain Controller (BDC)
  5. Bluetooth antenna
  6. Headunit
  7. USB interface, front center console
  8. Wireless charging station
  9. WiFi antenna hotspot (integrated in the TCB2)
  10. TEL2 antenna (telematics connection)
  11. TEL1 antenna (connection for customer mobile telephone with optional equipment telephone with wireless charging (OE 6NW) and telematics services)
  12. Fuses in the power distribution box of the luggage compartment
  13. Telematic Communication Box 2 (TCB2) (emergency GSM antenna)
  14. USB interface, front center console below the center armrest
  15. LTE line compensator
  16. WiFi antenna (vehicle WiFi)
  17. USB hub
