BMW 5 Series: Bluetooth antenna

BMW 5 Series G30 2016-2023 Training Manual / Infotainment / Antenna System / Bluetooth antenna

The Bluetooth antenna is installed on the side in the area of the center console. The Bluetooth antenna is designed as simple cable antenna.

Antenna System

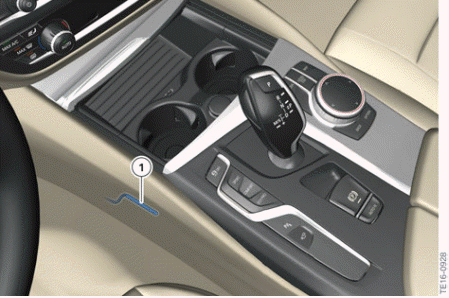

G30 Bluetooth antenna

  1. Bluetooth antenna

WiFi antenna

The antenna for the vehicle WiFi is installed in the area of the left side sill. The WiFi antenna is designed as simple cable antenna.

Antenna System

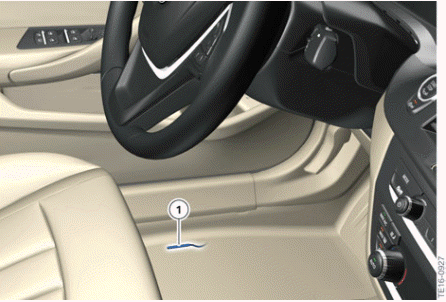

G30 WiFi antenna vehicle WiFi

  1. WiFi antenna

The WiFi antenna for the hotspot is integrated in the TCB2.
