BMW 5 Series: Overview
Switches in the vehicle

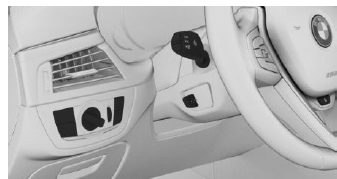

The light switch element is located next to the steering wheel.
.png)
Front fog lights.
.png)
Night Vision.
.png)
Lights off.
Daytime running lights.
.png)
Parking lights.
.png)
Automatic headlight control.
Adaptive light functions.
.png)
Low beams.
.png)
Instrument lighting.
.png)
Right roadside parking light.
.png)
Left roadside parking light.
Parking lights, low beams and roadside parking lights
General information
Position of switch: .png)
If the driver's door is opened when the drive-ready state is switched off, the exterior lighting is automatically switched off.
Parking lights
Position of switch: .png)
The vehicle is illuminated on all sides.
Do not use the parking lights for extended periods; otherwise, they might drain the battery and it would then be impossible to switch on drive-ready state.
Low beams
Position of switch: .png)
The low beams illuminate when drive-ready state is switched on.
Roadside parking lights
When the vehicle is parked, a one-sided roadside parking light can be switched on.
.png)
Right roadside parking light
on/off.
.png)
Left roadside parking light
on/off.
