BMW 5 Series: Seat heating
Overview

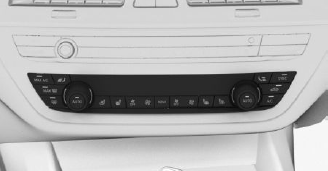

Front
.png)
.png)
Seat heating

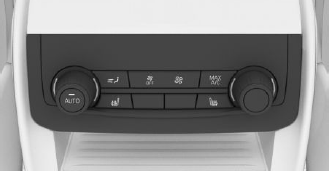

Rear
.png)
Seat heating
Switching on
Press the button once for each
temperature
level.
The maximum temperature is reached when three LEDs are lit.
If the trip is continued within approx. 15 minutes after a stop, seat heating is activated automatically with the temperature selected last.
When ECO PRO is activated the heating output is reduced.
Switching off
Press and hold the button until
the bar
display on the climate control display
goes out.
Seat heating distribution
The heating action in the seat cushion and the seat backrest can be distributed in different ways.
Via iDrive:
1. "My Vehicle".
2. "Vehicle settings".
3. "Climate functions".
4. Select a menu item:
- "Seat heating"
- "Seat and steering wheel heating"
- "Seat climate control"
- "Seat climate / steer. wheel heating"
5. Select the desired seat, if needed.
6. Press the Controller and turn it to set the seat heating distribution.
