BMW 5 Series: Gesture Control

BMW 5 Series G30 2016-2026 Training Manual / Displays and Controls / Gesture Control

Overview

A gesture control is available as optional equipment (OE 6U8) for the G30.

The function and the detection range of the gesture camera in the roof function center (FZD) is identical to that in the G12.

Innovations

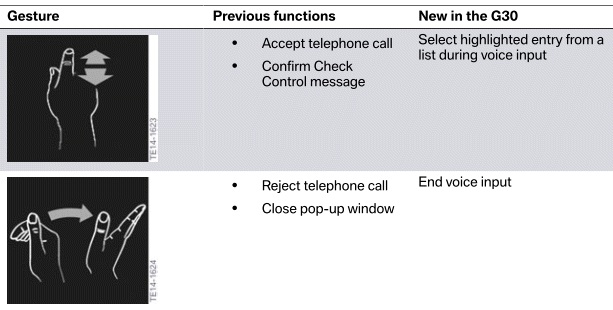

In the G30, new functions are possible for selected gestures. The previous functions have been adopted from the G12 without change. The following table lists the functions:

Innovations

The remaining gestures and their functions remain unchanged. Further information on this can be found in the Technical Reference Manual for "ST1501 G12 Complete Vehicle, Display and Controls" section.
