As is already familiar from the G12, the G30 does not have Integrated Chassis
Management (ICM). The
ICM functions are distributed between the optional equipment system (SAS) and
the Dynamic Stability
Control (DSC).
It has been possible to further improve the driving dynamics in the G30 by
selective use of various
control functions. This is particularly keenly felt in relation to the steering
behavior, the traction and the
vehicle's stability.

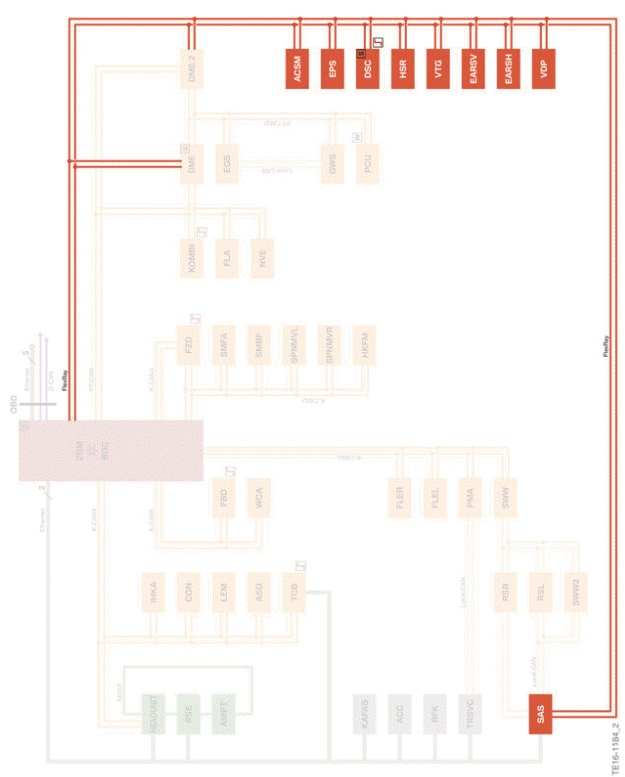

The control units necessary to meet the requirements on driving dynamics are
located on the FlexRay
bus. This allows them to quickly exchange their information with each other and
react to events.
The following actuators are activated as needed:
- Rear axle slip angle control HSR (optional equipment)
- Electronic Power Steering EPS (standard equipment)
- DME engine control unit
- VTG transfer case (optional equipment)
- Electric active roll stabilization at the front and rear (EARSV/EARSH)
(optional equipment)
- Electronic Damper Control (EDC) (optional equipment)

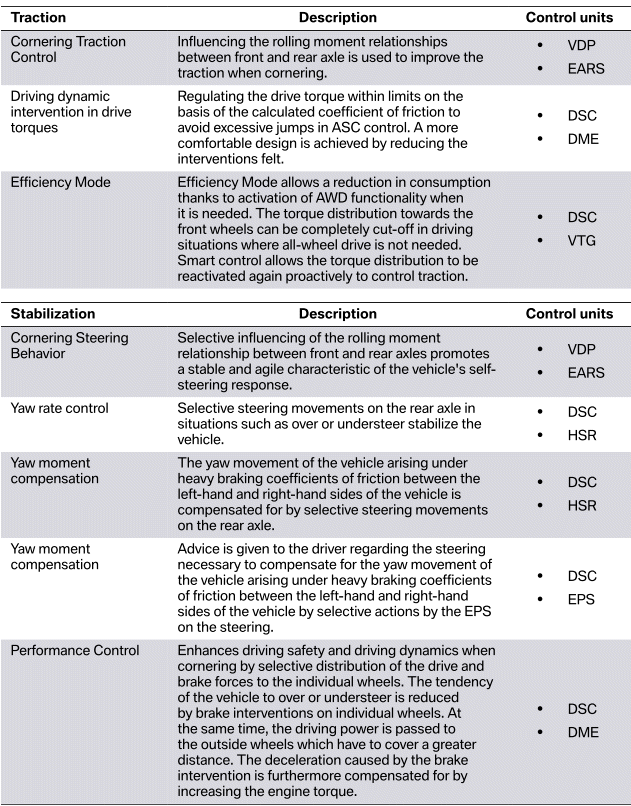

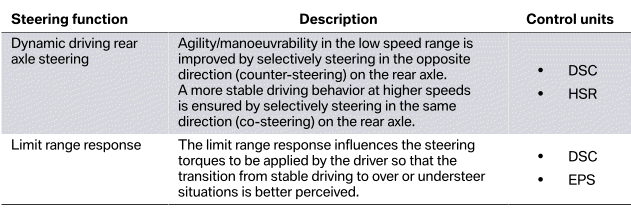

The tables below provide an overview of the various control functions and
their effects on the
drivability.
