BMW 5 Series: Steering

The G30 has Electronic Power Steering (EPS) in the following different versions:

  • Standard steering 12 V
  • Integral Active Steering 12 V
  • Integral Active Steering 24 V

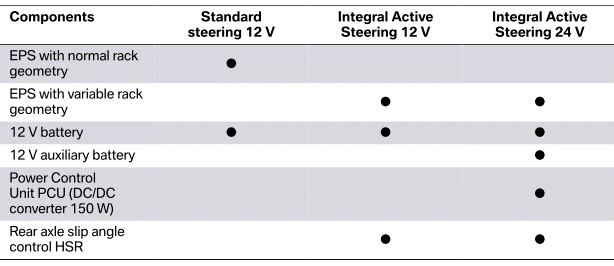

Overview of equipment specifications

The following graphic shows the installation positions of the different system components.

Driving Stability Control
Overview of steering system types in the G30

  1. Electromechanical Power Steering

1a - Conventional rack geometry (standard steering)
1b - Variable rack geometry (Integral Active Steering)

  1. Power Control Unit (PCU) (only for 24 V steering)
  2. Rear axle slip angle control Integral Active Steering
  3. 12 V auxiliary battery (only for 24 V steering)
  4. Separating element (only for 24 V steering)
  5. 12 V battery
  6. Dynamic Stability Control (DSC)

Only the basic steering is offered in some vehicle types.

Driving Stability Control

Integral Active Steering is offered as 12 V or 24 V steering depending on the front axle load.

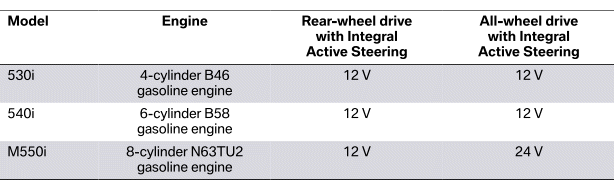

The following information for the voltage range of the Integral Active Steering applies for series launch.

The values can change at any point during series production.

Vehicles

Driving Stability Control

Steering wheels

Driving Stability Control

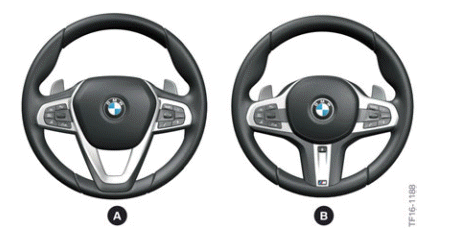

Overview of the steering wheel versions on the G30

  1. Sports steering wheel with shift paddles (382 mm) standard on all G30 models except on the M550i xDrive
  2. M sports steering wheel with shift paddles (373 mm) standard on the M550i xDrive, optional on all other G30 models

The following additional functions in the steering wheel can be present as options:

  • Heated steering wheel.
  • Steering wheel vibration for assistance systems such as lane departure and lane change warning.
  • Touch detection for the traffic jam assistant function.

Steering column adjustment

Steering column is adjusted electronically.
