BMW 5 Series: Displays

Various representations in the CID are possible depending on the vehicle equipment.

The respective peripheral region in the PDC view flashes red if vehicles are detected by the sensors.

Cross Traffic Alert

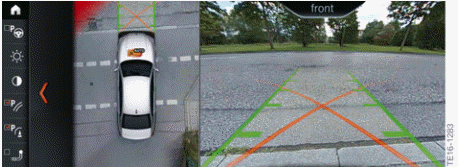

G30 Cross Traffic Alert in the PDC view

In vehicles with the Parking Assistant Plus, optional equipment (OE 5DN), the warning is shown on the Central Information Display in the PDC view image and in the front camera and rear view camera video images in the form of a red bar.

If Panorama View is activated, the Cross Traffic Alert is shown in the form of a red bar on the Central Information Display.

Cross Traffic Alert

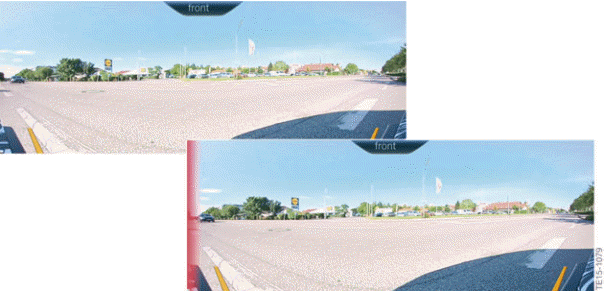

G30 Panorama View (Cross Traffic Alert Front)

Cross Traffic Alert

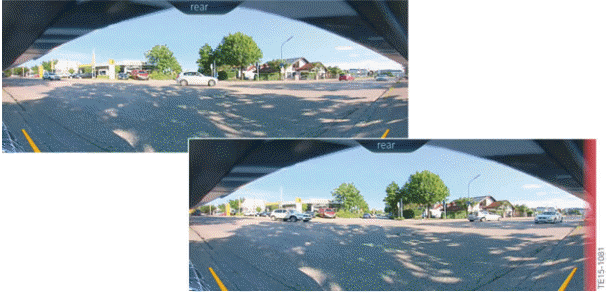

G30 Panorama View (Cross Traffic Alert Rear)

The Cross Traffic Alert is available to the driver for both the front and rear views.
