BMW 5 Series: Control units on the K-CAN4

Active Sound Design (ASD)

Control Units
Active Sound Design (ASD)

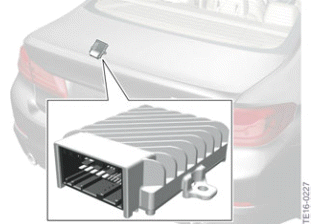

The control unit for Active Sound Design generates the engine sound for output in the vehicle interior.

The engine sound is calculated according to the programmed sound specification and various parameters such as the accelerator pedal angle (driver's desired load), engine speed and torque. It is then output via the vehicle's own audio system in the passenger compartment.

Controller (CON)

Control Units
Controller (CON)

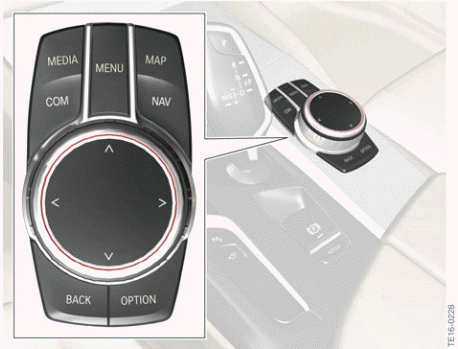

On the G30 a controller with touchpad is used. On the controller with touch control box the customer can input location information for the navigation system or phone numbers and contact details as numbers and letters. In the map operation the map section for example can be moved and enlarged or reduced by finger movement.

Integrated automatic heating / air conditioning (IHKA)

Control Units

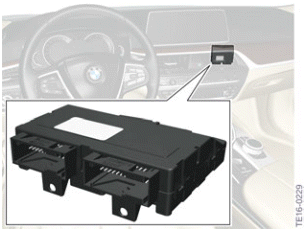

Integrated automatic heating / air conditioning (IHKA)

The integrated automatic heating/air conditioning system (IHKA) is standard equipment in the G30.

Light Effect Manager (LEM)

Control Units

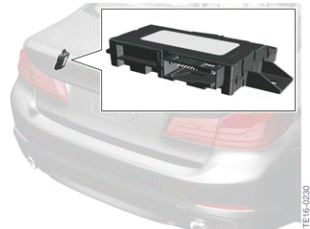

Light Effect Manager (LEM)

The control unit LEM is responsible for controlling the following lighting systems:

  • Speaker covers in the High End Bowers & Wilkins audio system.

Telematic Communication Box (TCB)

Control Units
Telematic Communication Box (TCB)

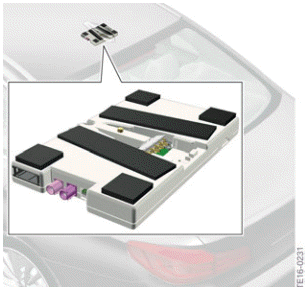

The 2nd-generation Telematic Communication Box (TCB) is installed in the G30. The Telematic Communication Box (TCB) is connected directly to the roof-mounted antenna and is responsible for the following functions:

  • BMW ConnectedDrive services (incl. BMW Assist with ECALL (emergency call function)) + BMW Online.
  • BMW Internet using a SIM card integrated in the vehicle (P-SIM).
  • Remote functions (reception and controller).
  • "Speech-to-text" function in Office area.
  • BMW Teleservices via P-SIM.
  • WLAN hotspot via P-SIM.

Control units on the K-CAN5

Remote control receiver (FBD)

Control Units

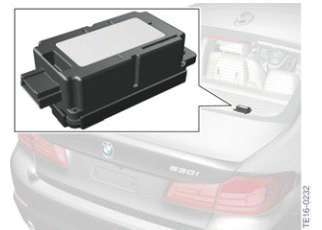

Remote control receiver

The control unit remote control receiver (FBD) is responsible for communication of the remote control services. It receives the data of the wheel electronics for the tire pressure control.

The control unit for the remote control service is not displayed by the BMW diagnosis system ISTA in the bus overview. Diagnosis is performed via the Body Domain Controller.
