BMW 5 Series: Comfort Access

BMW 5 Series G30 2016-2025 Training Manual / General Vehicle Electronics / Locking and Security Functions / Comfort Access

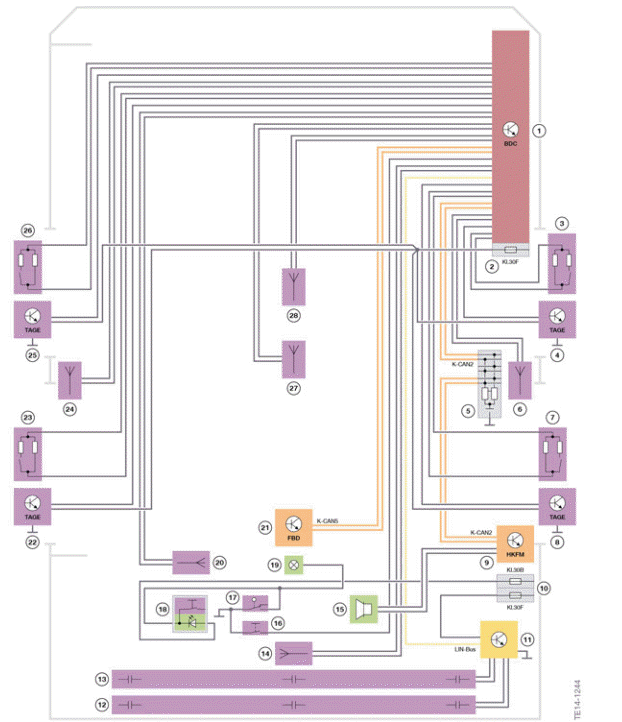

System wiring diagram

Locking and Security Functions
Comfort Access

  1. Body Domain Controller (BDC)
  2. Fuse in the Body Domain Controller
  3. Switch in door lock of front passenger door
  4. Outside door handle electronics (TAGE), front passenger door
  5. CAN terminator
  6. Comfort Access antenna, side sill, right
  7. Switch in door lock of rear passenger door
  8. Outside door handle electronics (TAGE), rear passenger door
  9. Trunk function module (HKFM)
  10. Fuses in the power distribution box, rear right
  11. Control unit for hands free rear lid opening
  12. Sensor at bottom for non-contact trunk opening
  13. Sensor at top for non-contact trunk opening
  14. Antenna for the parking assistant for the rear bumper
  15. Acoustic warning device for trunk activation
  16. Button for trunk
  17. Trunk contact switch in the trunk lock
  18. Button for closing trunk
  19. Luggage compartment light
  20. Comfort Access antenna, luggage compartment
  21. Remote control receiver (FBD)
  22. Outside door handle electronics (TAGE), rear driver's side door
  23. Switch in door lock of rear driver's side door
  24. Comfort Access antenna, side sill, left
  25. Outside door handle electronics (TAGE), driver's door
  26. Switch in door lock of driver's door
  27. Comfort Access antenna, passenger compartment
  28. Comfort Access antenna, passenger compartment
