BMW 5 Series: Automatic operation of trunk

BMW 5 Series G30 2016-2026 Training Manual / General Vehicle Electronics / Locking and Security Functions / Automatic operation of trunk

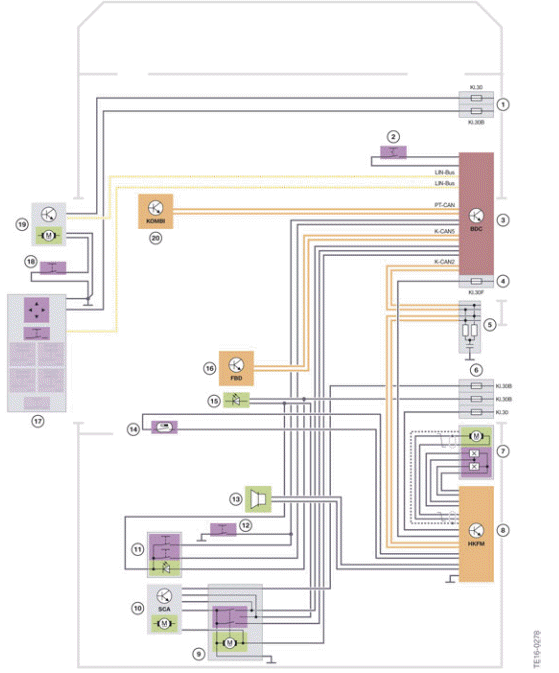

System wiring diagram

Locking and Security Functions
Automatic operation of trunk

  1. Fuses in the power distribution box, front right
  2. Hotel position switch
  3. Body Domain Controller (BDC)
  4. Fuse in the Body Domain Controller
  5. CAN terminator
  6. Fuses in the rear power distribution box
  7. Trunk lift drive, right
  8. Trunk function module (HKFM)
  9. trunk contact switch in the trunk lock
  10. Automatic Soft Close drive
  11. Button for closing trunk (inner)
  12. Button for trunk
  13. Acoustic warning device for trunk activation
  14. Reed contact
  15. Luggage compartment light
  16. Remote control receiver (FBD)
  17. Switch block, driver's door
  18. Button for opening trunk
  19. Power window motor, driver's side front
  20. Instrument panel (KOMBI)

Automatic Soft Close system

System wiring diagram

Locking and Security Functions
Automatic Soft Close system

  1. Body Domain Controller (BDC)
  2. Switch in door lock of front passenger door
  3. Automatic Soft Close drive, front passenger door
  4. Switch in door lock of rear passenger door
  5. Automatic Soft Close drive, rear passenger door
  6. Fuses in the power distribution box, rear right
  7. Trunk contact switch in the trunk lock
  8. Automatic Soft Close drive, trunk
  9. Automatic Soft Close drive, rear driver's-side door
  10. Switch in door lock of rear driver's side door
  11. Automatic Soft Close drive, driver's door
  12. Switch in door lock of driver's door
