BMW 5 Series: Windshield Wiper/Washer System

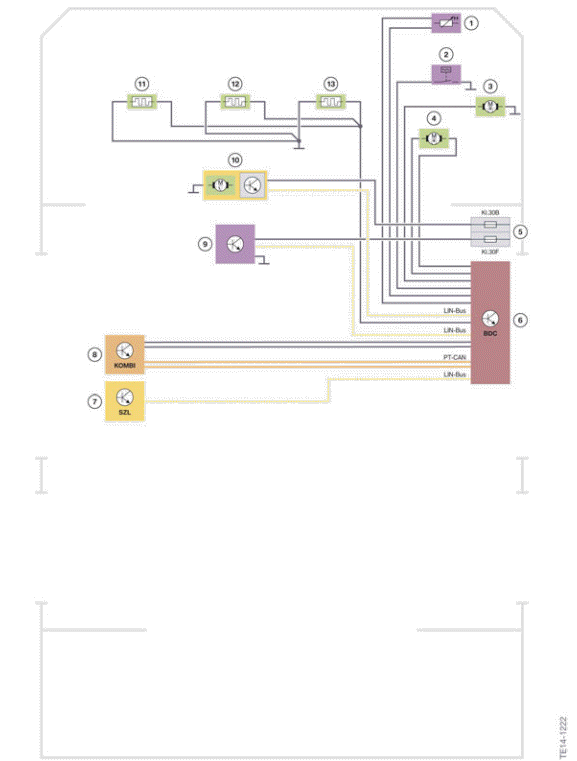

System wiring diagram

System wiring diagram
Wash/wipe system

  1. Outside temperature sensor
  2. Washer fluid level switch
  3. Washer pump for headlight cleaning system
  4. Electric motor, windscreen washer pump
  5. Fuses in the power distribution box, front right
  6. Body Domain Controller (BDC)
  7. Steering column switch cluster (SZL)
  8. Instrument panel (KOMBI)
  9. Rain‐light‐solar-condensation sensor
  10. Wiper motor
  11. Heated washer jet, left
  12. Heated washer jet, center
  13. Heated washer jet, right

The wiper motor is a 12 V motor with transmission. The control unit, wiper motor and the transmission form one complete unit. This wiper motor unit consists of:

  • A permanently excited direct current motor with attached reduction gear.
  • Control unit electronics with eccentric shaft sensor with attached plug connection.

The control unit in the wiper motor is able to identify the following faults:

  • Faults in the control unit electronics.
  • Short circuits at the motor and sensor system.
  • Open lines at the motor and sensor system.

The control unit in the wiper motor does not have a fault memory. The fault code entry is stored in the Body Domain Controller (BDC).

The heated washer jets are activated by the Body Domain Controller.

The Body Domain Controller is also responsible for actuation of the windshield washer pump and evaluation of the washer fluid level switch.
