BMW 5 Series: Seat heating for driver/front passenger

For the first time on a BMW vehicle it is now possible to pre-set the seat heating. It is possible to select between the driver and front passenger and to choose the heating stage. If the ambient temperature drops below the pre-set value, set by the driver and the relevant seat belt buckle is latched, then the seat heating is automatically activated as soon as the vehicle drives off. The integrated automatic heating/air conditioning system (IHKA) main menu is opened via the IHKA menu button.

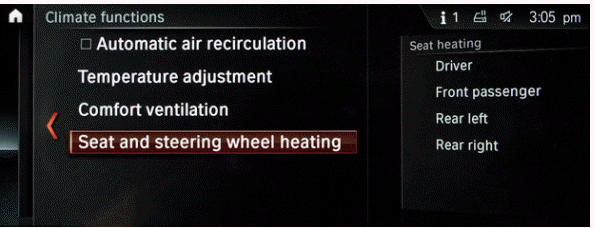

First the seat and steering wheel heating needs to be selected.

Interior Equipment
G30 Seat heating for driver/front passenger

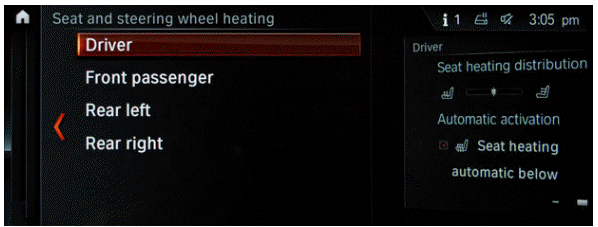

In the next step a selection needs to be made between driver or front passenger.

Interior Equipment
G30 Seat heating for driver/front passenger

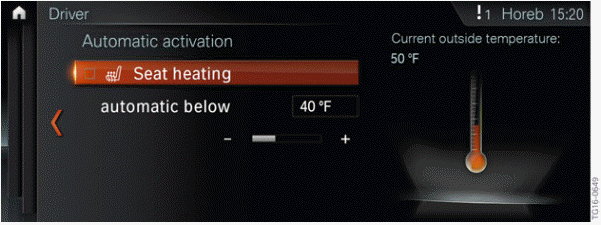

In the next step the automatic seat heating needs to be selected with a check mark.

Interior Equipment
G30 Seat heating for driver/front passenger

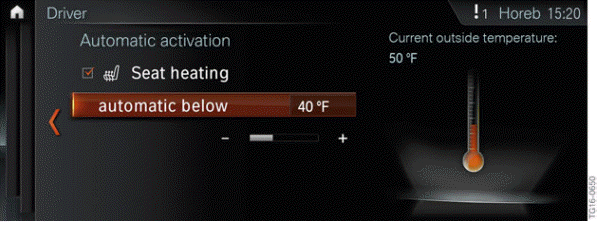

In this step the ambient temperature can be set selected by the driver and passenger. If the ambient temperature drops below the selected value, the seat heating is automatically activated.

Interior Equipment
G30 Seat heating for driver/front passenger

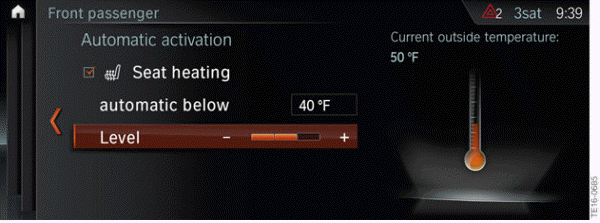

In this step one of three heating stages of the seat heating is set.

Interior Equipment
G30 Seat heating for driver/front passenger

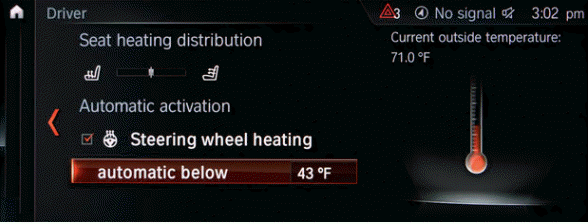

This function is also offered for the active seat ventilation and for the steering wheel heating.

Interior Equipment
G30 Steering wheel heating

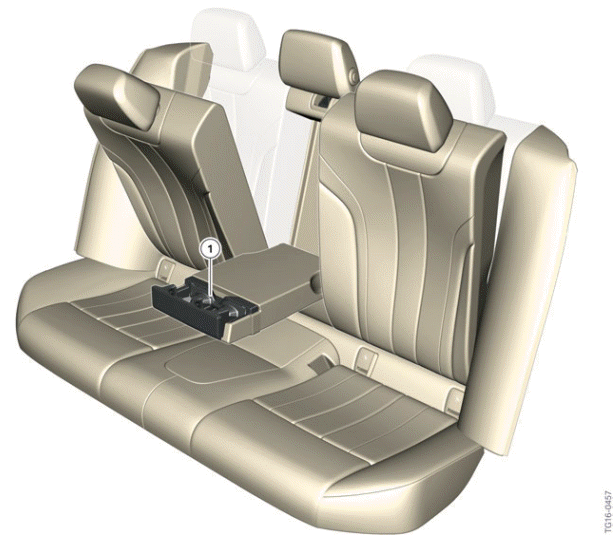

Rear seats

The decorative stitches and contrast colors already familiar from the first row of seats are also carried over into the second row of seats, where they help create a harmonious overall impression.

Functionality is underlined thanks to the easily accessible Isofix attachments and the cup holders in the center armrest. The 40:20:40 folding backrest can only be released by the levers from inside the luggage compartment. Rear seat heating is available as optional equipment (OE 4HA).

Interior Equipment
G30 Rear seats

  1. Cupholder
