BMW 5 Series: Rear light

On the G30, the rear light assembly is attached with 3 screws to the body. Due to the very small gap dimensions to the body, it is necessary to adjust the rear lights to the body. Two adjusting elements (figure B) are provided for this purpose; they can be seen when the trunk is open and the trim panel has been removed. To adjust the gap dimensions, the adjusting element can be screwed in or out in the x direction. The mounting bolt (figure A) serves solely for mounting in the Y direction.

Body Repair Level 1

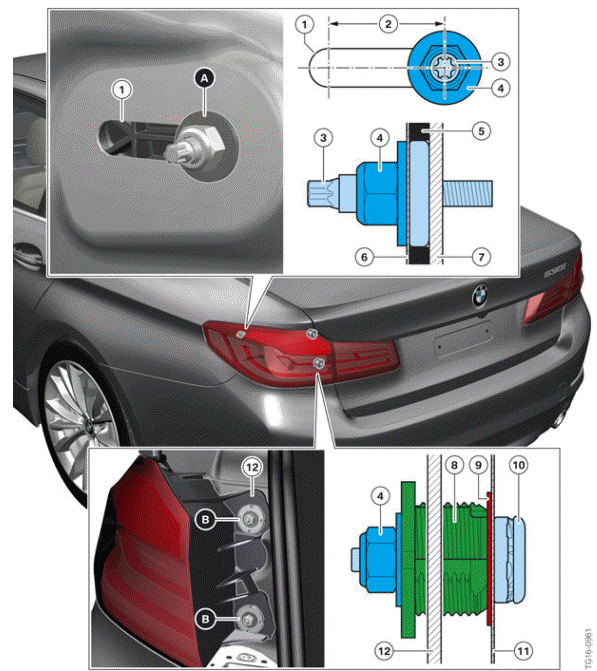

G30 Rear light

  1. Mounting bolt behind the luggage compartment trim panel
  2. Adjusting elements
  1. Elongated hole
  2. Adjustment range in X direction
  3. Mounting bolt on the rear light
  4. Lock nut
  5. Gasket
  6. Body
  7. Rear light
  8. Adjusting element
  9. Sealing washer
  10. Mounting bolt on the body
  11. Body
  12. Rear light
