BMW 5 Series: Overview of voltage supply

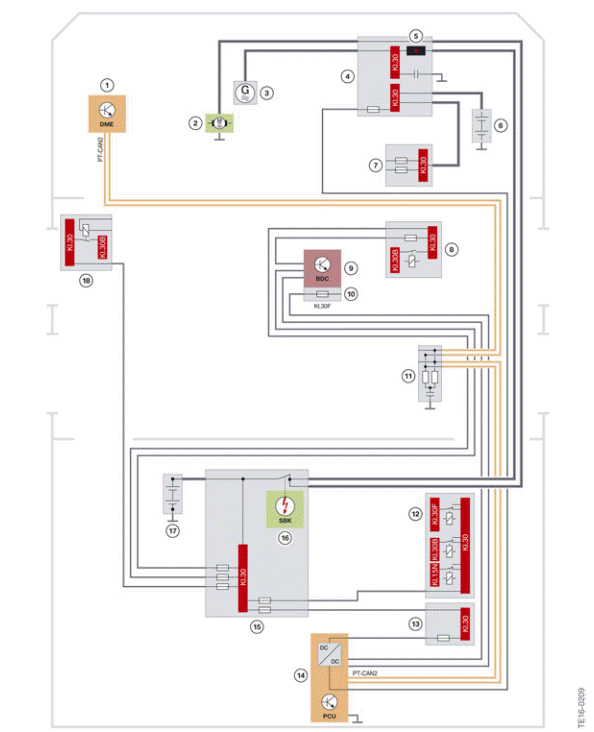

System wiring diagram
.png)
Voltage supply
- Digital Motor Electronics (DME)
- Starter motor
- Alternator
- Power distribution box, engine compartment
- Jump start terminal point
- Auxiliary battery, engine compartment
- Power distribution box, auxiliary battery, engine compartment
- Power distribution box, front right
- Body Domain Controller (BDC)
- Fuse in the Body Domain Controller
- CAN terminator
- Power distribution box, rear
- Fuse in the power distribution box, battery, right
- Power Control Unit PCU 500 W
- Battery power distribution box
- Safety battery terminal
- Battery
- Power distribution box, front left (PHEV version only)
READ NEXT:
Overview of luggage compartment
Battery
Power distribution box, battery, right
Power distribution box, rear
Power Control Unit (PCU) 500 W
Power Control Unit (PCU) 150 W
Power distribution box
AGM batteries are used for the voltage supply in the G30.
There may by 1, 2 or 3 batteries in the vehicle depending on the engine version
and vehicle
equipment.
Starter battery in the luggage comp
Power distribution box, front right
A relay for terminal 30B is installed in the front right power distribution
box.
Consumers are supplied with terminal 30, terminal 30B and terminal 15N and
prov
