BMW 5 Series: Harman Kardon system

BMW 5 Series G30 2016-2026 Training Manual / Infotainment / Speaker Systems / Harman Kardon system

System wiring diagram

Speaker Systems

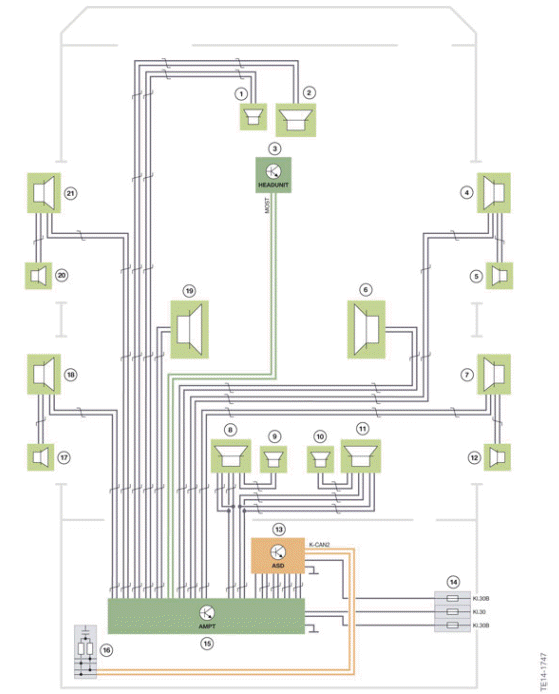

G30 System wiring diagram, Harman Kardon system

  1. Tweeter, front center
  2. Mid-range speaker, front center
  3. Headunit
  4. Mid-range speaker, front right
  5. Tweeter, front right
  6. Bass speaker, right
  7. Mid-range speaker, rear right
  8. Mid-range speaker, storage shelf on left
  9. Tweeter, left storage shelf
  10. Tweeter, rear window shelf, right
  11. Mid-range speaker, rear window shelf, right
  12. Tweeter, rear right
  13. Active Sound Design (ASD)
  14. Fuses in the power distribution box of the luggage compartment
  15. Amplifier Top (top high fidelity amplifier)
  16. CAN terminator
  17. Tweeter, rear left
  18. Mid-range speaker, rear left
  19. Bass speaker, left
  20. Tweeter, front left
  21. Mid-range speaker, front left

System overview

Speaker Systems

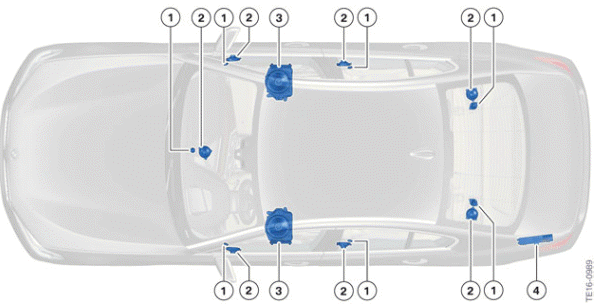

G30 System overview Harman Kardon system

  1. Tweeters
  2. Mid-range speakers
  3. Bass speakers
  4. Amplifier Top (top high fidelity amplifier)
