BMW 5 Series G30 2016-2026 Training Manual / Voltage Supply and Bus Systems / Voltage Supply / Components

Overview of luggage compartment

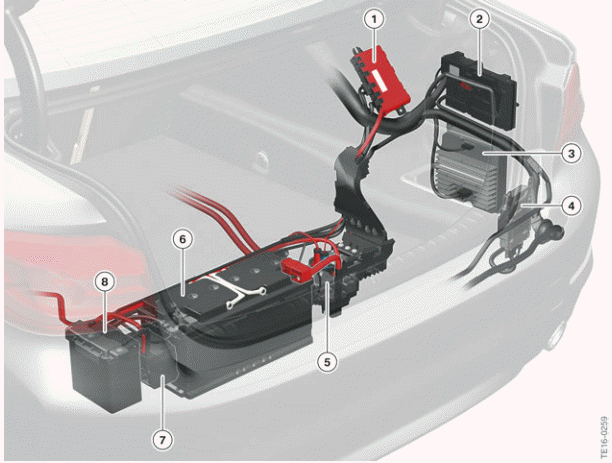

Components
Battery

  1. Power distribution box, battery, right
  2. Power distribution box, rear
  3. Power Control Unit (PCU) 500 W
  4. Power Control Unit (PCU) 150 W
  5. Power distribution box with safety battery terminal
  6. Battery
  7. Separator
  8. Auxiliary battery, luggage compartment

The vehicle battery in the G30 is an AGM battery with 90 Ah or 105 Ah. The battery variant depends on the engine version and optional equipment.

Overview of engine compartment

Components

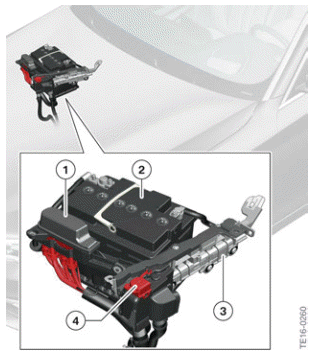

Auxiliary battery, engine compartment

  1. Power distribution box, engine compartment
  2. Auxiliary battery, engine compartment
  3. Power distribution box, auxiliary battery, engine compartment
  4. Jump start terminal point

The auxiliary battery in the engine compartment of the G30 is an AGM battery with 50 Ah or 60 Ah.

The battery variant depends on the engine version and optional equipment.
