BMW 5 Series G30 2016-2026 Training Manual / Infotainment / Speaker Systems / Overview, HiFi system

Overview

In the G30, 3 speaker systems are offered. A Hi-fi system is installed as standard equipment.

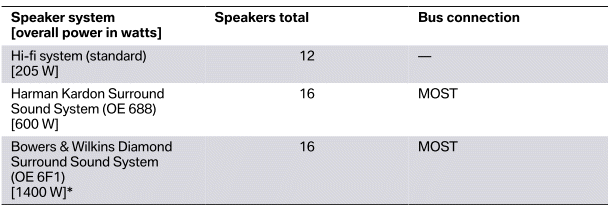

The following table gives you an overview of the speaker systems utilized in the G30:

Speaker Systems

HiFi system

System wiring diagram

Speaker Systems

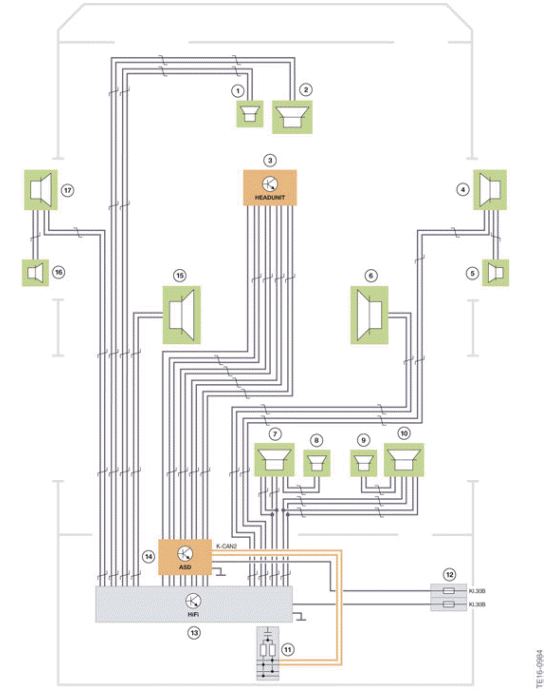

G30 System wiring diagram of hi-fi system

  1. Tweeter, front center
  2. Mid-range speaker, front center
  3. Headunit
  4. Mid-range speaker, front right
  5. Tweeter, front right
  6. Bass speaker, right
  7. Mid-range speaker, storage shelf on left
  8. Tweeter, rear window shelf, left
  9. Tweeter, rear window shelf, right
  10. Mid-range speaker, rear window shelf, right
  11. CAN terminator
  12. Fuses in the power distribution box of the luggage compartment
  13. HiFi amplifier
  14. Active Sound Design (ASD)
  15. Bass speaker, left
  16. Tweeter, front left
  17. Mid-range speaker, front left

System overview

Speaker Systems

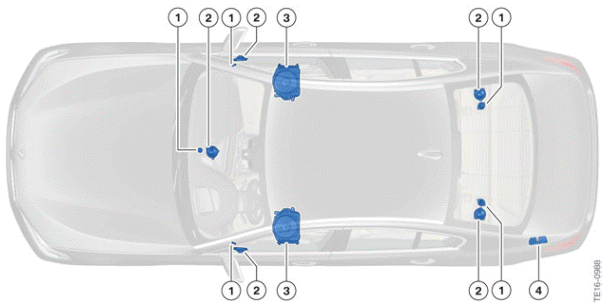

G30 System overview hi-fi system

  1. Tweeters
  2. Mid-range speakers
  3. Bass speakers
  4. HiFi amplifier
