BMW 5 Series: Bowers & Wilkins Diamond Surround Sound System

BMW 5 Series G30 2016-2026 Training Manual / Infotainment / Speaker Systems / Bowers & Wilkins Diamond Surround Sound System

System wiring diagram

Speaker Systems

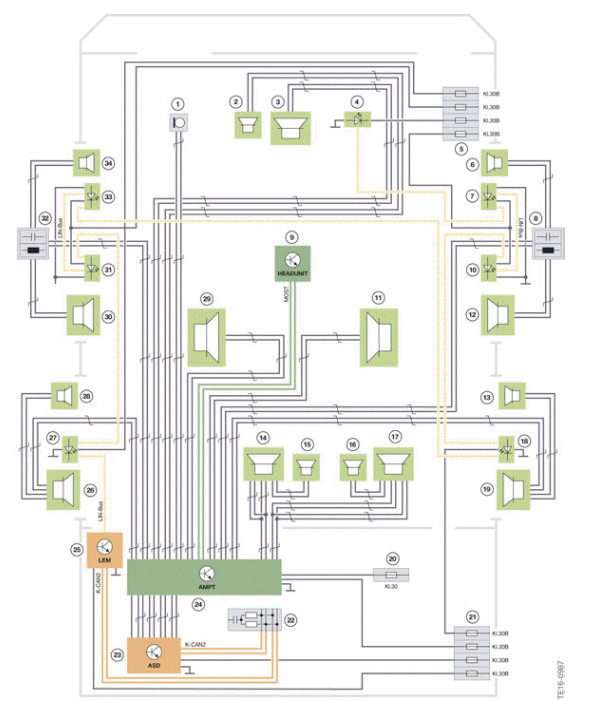

G30 System wiring diagram Bowers & Wilkins Diamond Surround Sound system

  1. Sound design microphone
  2. Tweeter, front center
  3. Mid-range speaker, front center
  4. Front center LED
  5. Fuses in power distribution box, front right
  6. Tweeter, front right
  7. Mirror triangle LED, front right
  8. Active frequency diplexer, front right
  9. Headunit
  10. Speaker cover LED, front right
  11. Bass speaker, right
  12. Mid-range speaker in the front right door trim panel
  13. Tweeter, rear right
  14. Mid-range speaker, storage shelf on left
  15. Tweeter, rear window shelf, left
  16. Tweeter, rear window shelf, right
  17. Mid-range speaker, rear window shelf, right
  18. Speaker cover LED, rear right
  19. Mid-range speaker, rear right
  20. Fuse in the power distribution box, battery
  21. Luggage compartment power distribution box fuse
  22. CAN terminator
  23. Active Sound Design (ASD)
  24. Amplifier Top (top high fidelity amplifier) AMPT
  25. Light Effect Manager (LEM)
  26. Mid-range speaker, rear left
  27. Speaker cover LED, rear left
  28. Tweeter, rear left
  29. Bass speaker, left
  30. Mid-range speaker, front left
  31. Speaker cover LED, front left
  32. Active frequency diplexer, front left door
  33. Left mirror triangle LED
  34. Tweeter, front left

System overview

Speaker Systems

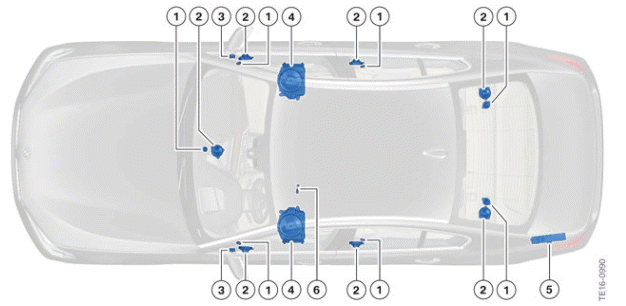

G30 System overview Bowers & Wilkins Diamond Surround Sound system

  1. Tweeters
  2. Mid-range speakers
  3. Active frequency diplexer
  4. Bass speakers
  5. Amplifier Top (top high fidelity amplifier)
  6. Microphone, driver's side

Service

When removing and installing the bass speakers, it is important to ensure that the gasket is seated properly. If the gasket is destroyed or damaged during the installation, it could lead to the ingress of water into the vehicle interior in some cases.
