BMW 5 Series: Functions

All the functions are already familiar from the G12.

Features of the Headunit High 2

The table below provides an overview of the functions of the Professional Navigation System (OE 609):

Route magnet

Navigation

  • The current route guidance can be modified if navigation is active.

Quick search

Navigation

  • The quick search can be used to find special destinations or addresses by input.

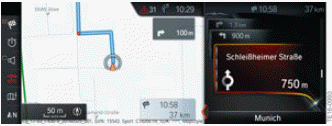

Assistance window

Navigation

  • Further information can be displayed in the assistance window of the split screen display.

Roadbook

Navigation

  • The routing, including junction and additional information is displayed in the assistance window.

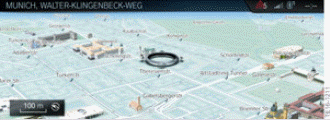

3D view

Navigation

  • The buildings in selected cities are shown in a 3D view.

Auto zoom

Navigation

  • In active route guidance, the map is automatically zoomed as a junction is approached.

RTTI

Navigation

  • The current traffic flow is shown in different colors.

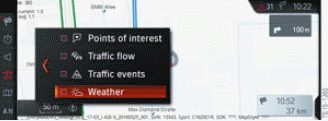

Weather in map

Navigation

  • The current weather is displayed on the map.

Satellite view

Navigation

Areas to avoid

Navigation

Detailed street view

Navigation

3D exit

Navigation

Online routes

Navigation

Learning navigation (online)

Navigation

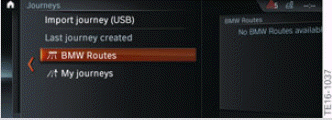

BMW Routes including importing and saving routes

Navigation

Aerial view

Navigation

Parking information

Navigation

Route guidance

If route guidance has been interrupted, the message asking whether the route guidance should be continued is only displayed under the following conditions:

  • The interruption lasted longer than 15 minutes.
  • The current vehicle location is more than 300 m from the destination.

Turn-off recommendation

The turn-off and lane recommendations are not only displayed in the assistance window. The turn- off information and lane recommendations are also shown in the navigation map if autozoom with information is active.

Navigation

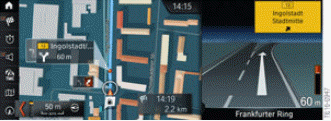

G30 turn-off recommendation

  1. Lane recommendation on the map
  2. Turn-off recommendation on the map
  3. Lane in which the vehicle is currently located
  4. Turn-off recommendation in the assistance window
  5. Lane recommendation in the assistance window
