BMW 5 Series G30 2016-2025 Training Manual / General Vehicle Electronics / Power Windows

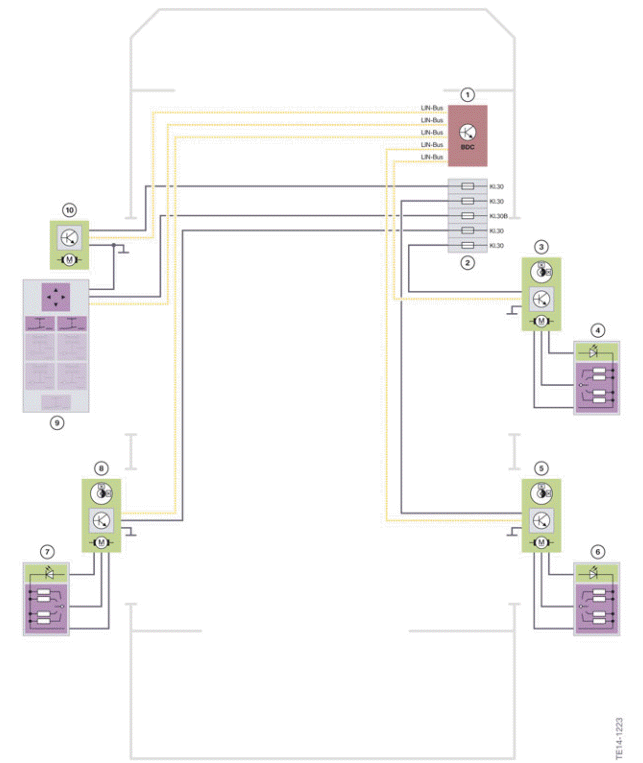

System wiring diagram

System wiring diagram
Power window regulator

  1. Body Domain Controller (BDC)
  2. Fuses in the power distribution box, front right
  3. Power window motor, passenger's side
  4. Power window switch, front passenger's side, front
  5. Power window motor, passenger's side rear
  6. Power window switch, front passenger's side rear
  7. Power window switch driver's side, rear
  8. Power window motor, driver's side rear
  9. Switch block, driver's door
  10. Power window motor, driver's side front

Slide/Tilt Sunroof

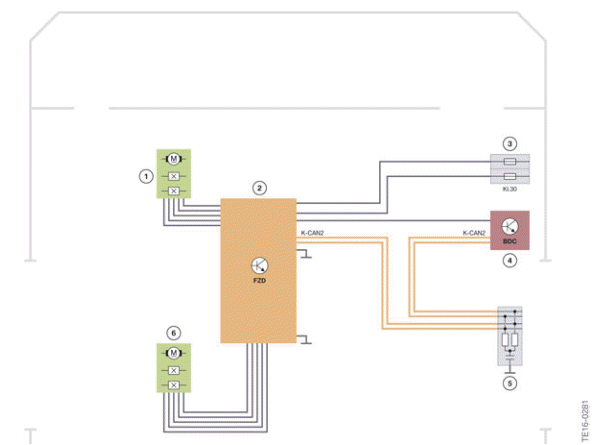

System wiring diagram

System wiring diagram
Slide/Tilt sunroof

  1. Motor, slide/tilt sunroof
  2. Roof function center (FZD)
  3. Fuses in the power distribution box, front right
  4. Body Domain Controller (BDC)
  5. CAN terminator
  6. Sliding roofliner motor
