BMW 5 Series: Airbag indicator light

The airbag indicator light is located on the instrument panel. The airbag indicator light lights up and then goes out during the pre-drive check to signal readiness of the Advanced Crash Safety Module (ACSM) and passive safety systems.

System Components

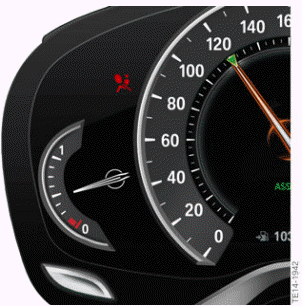

G30 Airbag indicator light

Seat belt warning light

A visual and audible warning is issued if the seat belt is not fastened or is unbuckled during driving.

System Components

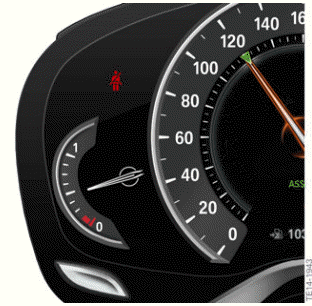

G30 Seat belt warning light

The seat belt warning light of the seat belts in the rear passenger compartment is briefly visible when the engine is started or for a change in the instrument cluster.

Indicator lamp for front passenger airbag deactivation

In the G30, the indicator lamp for front passenger airbag deactivation is located in the roof function center. The indicator lamp for front passenger airbag deactivation is automatically activated if the CIS mat detects a small child in a child seat or if the front passenger seat is unoccupied.

System Components

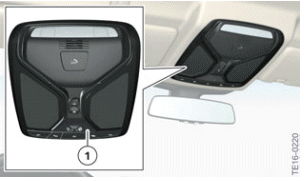

G30 Indicator lamp for front passenger airbag deactivation

  1. Indicator lamp for front passenger airbag deactivation
