BMW 5 Series G30 2016-2026 Training Manual / General Vehicle Electronics / Exterior Lights / Versions, Lighting (front)

Versions

The following exterior light versions are available for the G30:

  • LED Adaptive headlights with cornering light
  • Adaptive Full LED headlight (OE 552) is optional
  • LED fog lights

Lighting, front

The following are the headlight versions available for the G30:

Exterior Lights

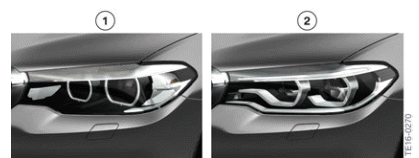

Headlight versions

  1. LED adaptive headlights with cornering light
  2. Adaptive Full LED Headlights

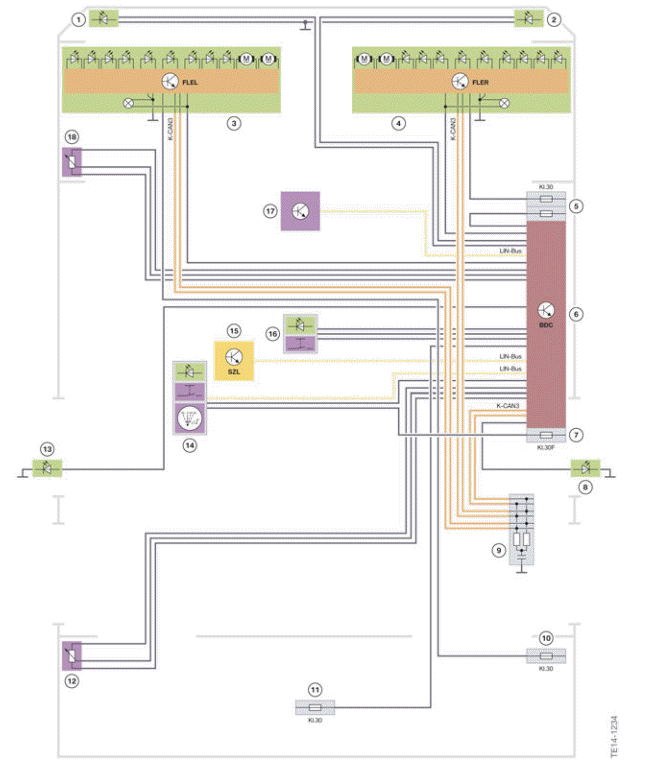

System wiring diagram

Exterior Lights
Front exterior lights

  1. Left LED fog light
  2. Right LED fog light
  3. Left headlight with Frontal Light Electronics Left (FLEL)
  4. Right headlight with Frontal Light Electronics Right (FLER)
  5. Fuses in the power distribution box, front right
  6. Body Domain Controller (BDC)
  7. Fuse in the Body Domain Controller
  8. Turn indicator in exterior mirror, right
  9. CAN terminator
  10. Fuse for rear right power distribution box
  11. Fuse in the power distribution box, battery
  12. Ride-height sensor, rear left
  13. Turn indicator in exterior mirror, left
  14. Light switch
  15. Steering column switch cluster (SZL)
  16. Hazard warning switch/Intelligent Safety button
  17. Rain-light-solar-condensation sensor (RLSBS)
  18. Ride height sensor, front left

The turn indicator with LED technology and bulb are shown in the wiring diagram. Depending on the headlight version, the turn indicator is designed either with LED technology or as a bulb.

LED adaptive headlight with cornering light

Exterior Lights

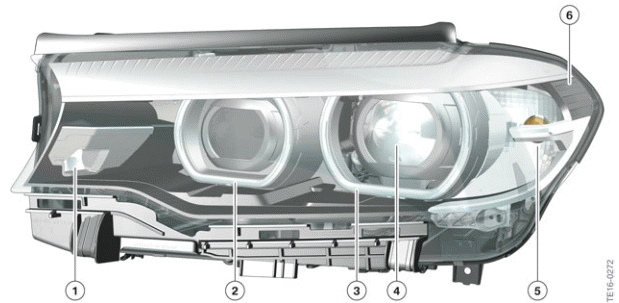

LED adaptive headlight with cornering light

  1. Cornering lights
  2. Side lights and daytime driving lights
  3. Side lights and daytime driving lights
  4. Low-beam headlight/High-beam headlight
  5. Turn indicator
  6. Side marker light

On the LED adaptive headlight with cornering light, the low-beam headlight and high beam are in the same reflector.

A bulb is also used for the turn indicator.

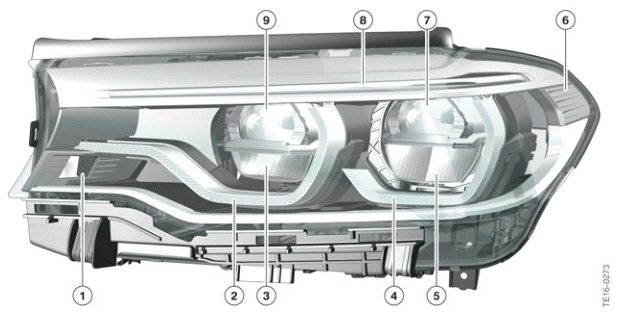

Adaptive full LED headlights

Exterior Lights
Adaptive LED Headlights

  1. Cornering lights
  2. Side lights and daytime driving lights
  3. High-beam headlight
  4. Side lights and daytime driving lights
  5. High-beam headlight
  6. Side marker light
  7. Low-beam headlight
  8. Turn indicator
  9. Low-beam headlight

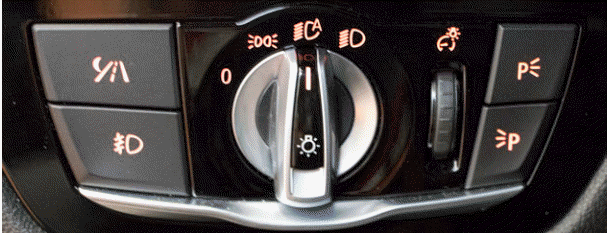

Headlight switch

There are two additional buttons on the headlight switch of the G30. These buttons on the right side of the switch, are to illuminate the right or left side parking lamps when the vehicle condition is switched to PARKING (asleep).

Exterior Lights
Headlight switch

Once the button is pressed a check control message will appear in the KOMBI to inform the driver of this feature.

Exterior Lights
Left roadside parking lamps on

Exterior Lights
Right roadside parking lamps on

Exterior Lights
Roadside parking lamps off
