BMW 5 Series: High-beam assistant

BMW 5 Series G30 2016-2025 Training Manual / General Vehicle Electronics / Exterior Lights / High-beam assistant

On vehicles with Camera-based driver assistance systems (KAFAS), the function of the high-beam assistant is performed by the KAFAS.

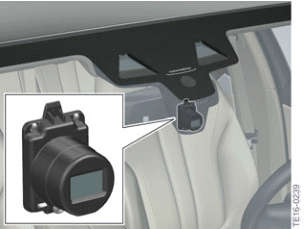

On vehicles without Camera-based driver assistance systems (KAFAS), the high-beam assistant is integrated in the interior mirror.

Exterior Lights
High-beam assistant (FLA)

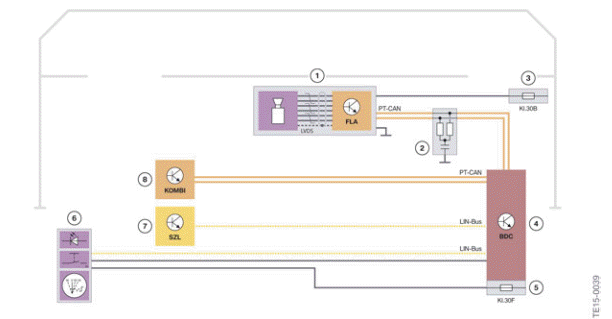

System wiring diagram

Exterior Lights
High-beam assistant

  1. High-beam assistant (FLA)
  2. CAN terminator
  3. Fuse for front right power distribution box
  4. Body Domain Controller (BDC)
  5. Fuse in the Body Domain Controller
  6. Light switch
  7. Steering column switch cluster (SZL)
  8. Instrument panel (KOMBI)

Ground lights

The ground lighting is integrated in the corresponding door modules. The LEDs of the ground lighting are directly activated by the Body Domain Controller (BDC).
