BMW 5 Series G30 2016-2026 Training Manual / Climate Control / Stratification
On the G30 the stratification for the driver/front passenger is not adjusted in the usual manner by the knurled wheels on the front dash panel. Instead, there is a menu button located in the center of the IHKA control panel. Pressing this button opens the IHKA menu in the CID. Once the menu is displayed in the CID, you must select the temperature adjustment button as shown below.
.png)

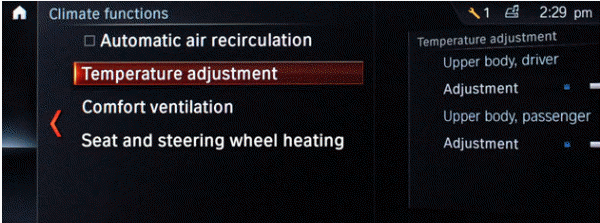

G30 Climate control functions menu
It is now possible to select the stratified air between driver and front passenger. Once the driver or passenger is selected, the stratification can be adjusted by turning the controller. The selected setting is saved by pressing the controller.
.png)

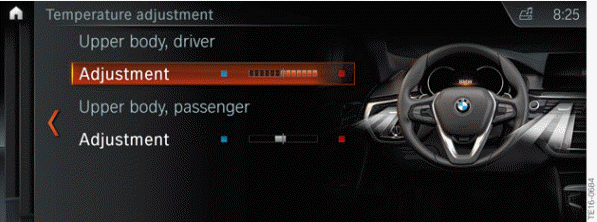

G30 IHKA stratification menu for driver/front passenger
