BMW 5 Series: Operation
The system is switched on via the Traffic Jam Assistant button on the
multifunction steering wheel
(MFL).
.png)

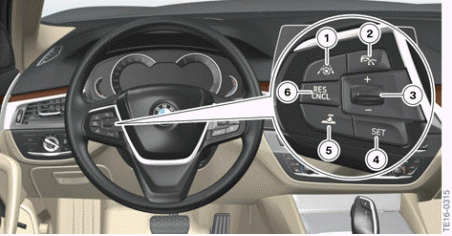

G30 buttons for ACC Stop&Go with Active Driving Assistant Plus optional
equipment (OE 5AT)
- Button for activating or deactivating the Active
Lane Keeping Assistant and Traffic Jam Assistant
- Button for activating or deactivating ACC Stop&Go
- Rocker switch for changing the set speed
- "SET" button for setting the speed of cruise control
- Button for adjusting the distance of the driver's vehicle to
the vehicle driving ahead
- Button for calling up a saved set speed/temporarily switching
off the cruise control
Displays
Grey steering wheel symbol:
-
The system has been interrupted and
will not make any further steering wheel
movements. The system is in Standby
mode.
-
Once the system conditions are
met, the system reactivates itself
automatically.
Green steering wheel symbol and lane edges:
Green steering wheel symbol, grey lane edges:
Yellow steering wheel symbol:
Red steering wheel symbol and acoustic signal
sounds:
Configuration options
The driver can change the system settings in the Intelligent Safety
configuration menu.
