BMW 5 Series: Operation
The Park Distance Control system is enabled in the following situations:
- If drive position R reverse gear is engaged when driving readiness is switched on.
- If the parking assistance button in the switch block next to the controller is pressed when driving readiness is switched on.
- Auto PDC is activated and all conditions for automatic activation are met.
.png)

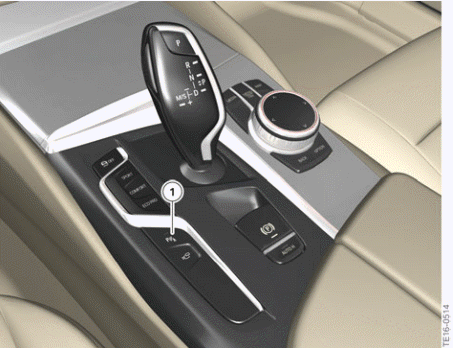

G30 switch block with parking assistance button
Further information about the operating concept for Auto PDC, the Active Park Distance Control function and acoustic signal output may be found in the "G12 Driver Assistance Systems" reference manual.
Deactivation criteria
Similar to other BMW models, the deactivation is distance/speed-based. The switch-off is effected after a journey of approximately 164 ft (50 m) or at a speed over 6 mph (10 km/h).
If a fault develops, a Check Control message "PDC has malfunctioned. Have system checked." is displayed in the Central Information Display (CID). In addition, the detection range of the sensors is shown shaded in the Central Information Display (CID).
