History

History

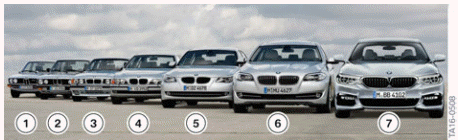

Historical overview of the BMW 5 Series

  1. E12 (1972-1981)
  2. E28 (1981-1987)
  3. E34 (1987-1995)
  4. E39 (1995-2003)
  5. E60 (2003-2010)
  6. F10 (2010-2016)
  7. G30 (production starts in late 2016 as a 2017 MY vehicle)

Overview of system descriptions

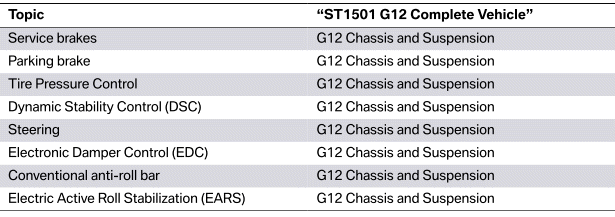

Many of the systems used are already known from the current BMW 7 Series G12. The "Comparison of G12 with G30" chapter lists the common elements and the differences. The explanations of the systems already familiar from the G12 are kept brief. Comprehensive system descriptions can be found in the G12 Technical Reference Manual for "ST1501 G12 Complete Vehicle".

Overview of system descriptions

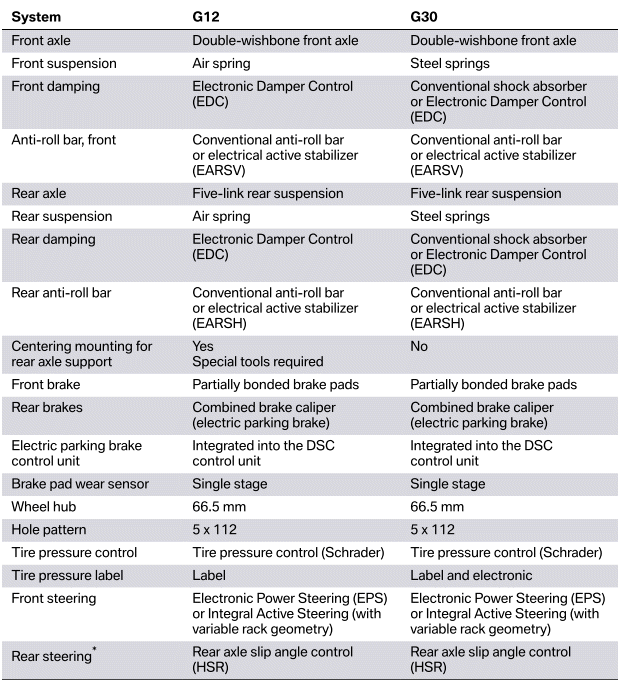

Comparison of G12 chassis and suspension with G30

Some of the systems used in the G30 have already been introduced in the G12. The following table provides an overview of the differences and common features between the two vehicles.

Comparison of G12 chassis and suspension with G30

* Only available in conjunction with the Integral Active Steering optional equipment.

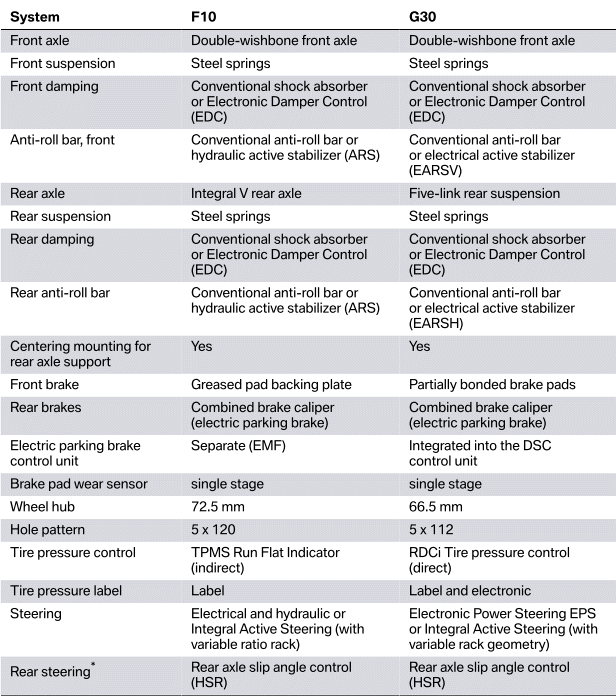

Comparison of F10 chassis and suspension with G30

Comparison of F10 chassis and suspension with G30

* Only available in conjunction with the Integral Active Steering optional equipment.
