BMW 5 Series: General information, Safety information
General information
Depending on the equipment version, the vehicle
is delivered with two vehicle keys or one vehicle
key and the BMW display key.
Each vehicle key contains a replaceable battery.
Depending on the equipment and country version,
various settings can be
configured for the button functions.
A personal driver profile for
each vehicle key is stored in the vehicle.
To provide information on maintenance requirements,
the service data is stored in the vehicle
key.
To prevent possible locking in of the vehicle key,
take the vehicle key with you when exiting the
vehicle.
Safety information
Warning
People or animals in the vehicle can lock the
doors from the inside and lock themselves in. In
this case, the vehicle cannot be opened from
the outside. There is a risk of injury. Take the
vehicle key with you so that the vehicle can be
opened from the outside.
Warning
For some country versions, unlocking from the
inside is only possible with special knowledge.
Persons who spend a lengthy time in the vehicle
while being exposed to extreme temperatures
are at risk of injury or death. Do not lock
the vehicle from the outside when there are
people in it.
Warning
Unattended children or animals in the vehicle
can cause the vehicle to move and endanger
themselves and traffic, for instance due to the
following actions:
- Pressing the Start/Stop button.
- Releasing the parking brake.
- Opening and closing the doors or windows.
- Engaging selector lever position N.
- Using vehicle equipment.
There is a risk of accidents or injuries. Do not
leave children or animals unattended in the vehicle.
Take the vehicle key with you when exiting
and lock the vehicle.

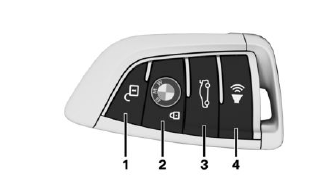

Overview
.png)
- Unlocking
- Locking
- Opening the trunk lid
- Press and hold or press three times in quick
succession: panic mode
Press briefly: headlight courtesy delay feature
