BMW 5 Series: Panic mode

You can trigger the alarm system if you find yourself in a dangerous situation.

  • vehicle keyPress the button on the vehicle key and hold for at least 3 seconds.
  • Briefly press the button on the vehicle key three times in succession.

To switch off the alarm: press any button.

Headlight courtesy delay feature on

vehiclePress and hold the button on the vehicle key for approx. 1 second.

It is possible to adjust the duration of the headlight courtesy delay feature.

Replacing the battery

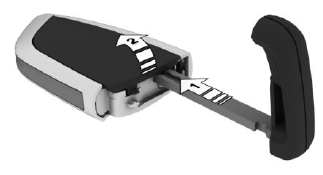

1. Remove the integrated key from the vehicle key.

2. Place the integrated key underneath the battery compartment cover, arrow 1, and lift the cover with a lever movement of the integrated key, arrow 2.

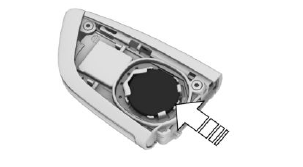

3. Push battery in the direction of the arrow using

3. Push battery in the direction of the arrow using a pointed object and lift it out.

4. Insert a type CR 2032 battery with the positive

4. Insert a type CR 2032 battery with the positive side facing up.

5. Press the cover closed.

6. Push the integrated key into the vehicle key until the integrated key engages.

a dealer'sHave old batteries disposed of by a dealer's service center or another qualified service center or repair shop or take them to a collection point.

Additional vehicle keys

Additional vehicle keys are available from a service center or another qualified service center or repair shop.

Loss of vehicle keys

A lost vehicle key can be blocked and replaced by a dealer's service center or another qualified service center or repair shop.

Malfunction

General information

A Check Control message is displayed.

Vehicle key recognition by the vehicle may malfunction under the following circumstances:

  • The battery of the vehicle key is discharged.

    For replacing the battery.

  • Interference of the radio connection from transmission towers or other equipment with high transmitting power.
  • Shielding of the vehicle key due to metal objects.

    Do not transport the vehicle key together with metal objects.

  • Interference of the radio connection from mobile phones or other electronic devices in direct proximity to the vehicle key.

    Do not transport the vehicle key together with electronic devices.

  • Interference of radio transmission by a charging process of mobile devices, for instance charging of a mobile phone.
  • The vehicle key is in direct proximity of the wireless charging tray.

    Place the vehicle key in a different location.

In the case of interference, the vehicle can be unlocked and locked from the outside with the integrated key.

Switching the drive-ready state on via emergency detection of the vehicle key

It is not possible to switch on the drive-ready

It is not possible to switch on the drive-ready state if the vehicle key has not been detected.

Proceed as follows in this case:

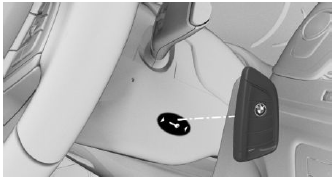

1. Hold the back of the vehicle key against the marked area on the steering column. Pay attention to the display in the instrument cluster.

2. If the vehicle key is detected:

Switch on drive-ready state within 10 seconds.

If the vehicle key is not recognized, slightly change the position of the vehicle key and repeat the procedure.

Frequently Asked Questions

What precautions can be taken to be able to open a vehicle with an accidentally locked in vehicle key?

  • The options provided by the Remote Services of the BMW Connected app include the ability to lock and unlock a vehicle.

    This requires an active BMW Connected‐ Drive contract and the BMW Connected app must be installed on a smartphone.

  • Unlocking the vehicle can be requested via the BMW ConnectedDrive Call Center.

    An active BMW ConnectedDrive contract is required.
