BMW 5 Series: Equipment

BMW 5 Series G30 2016-2026 Training Manual / Telephone and Telematics / Telephone Systems / Equipment

The G30 has two different hands-free mode and charging variants for telephones:

  • Convenient telephone with extended smartphone connection (OE 6NS) (standard equipment)
  • Telephone with wireless charging (OE 6NW) (optional equipment)

Convenient telephone with extended smartphone connection

No base plate is fitted for the convenient telephone with extended smartphone connection optional equipment. With this equipment it is therefore also not possible to charge a mobile phone through a snap-in adapter. Nor is connection to the roof-mounted antenna possible any longer with this optional equipment.

Convenient telephone with extended smartphone connection is only offered in countries in which the telephone system with wireless charging optional equipment is not available.

Differences over a hands-free system with USB interface The list below shows the convenient telephone with extended smartphone connection:

  • A microphone on the drivers and passenger's side for improved voice quality.
  • Two USB interfaces each with 2.1 A charge current.
  • WiFi Hotspot optional equipment (OE 6WD) can be added.
  • Possible to play videos via USB.
  • Coupling of 2 mobile phones and an audio device simultaneously.

USB interface

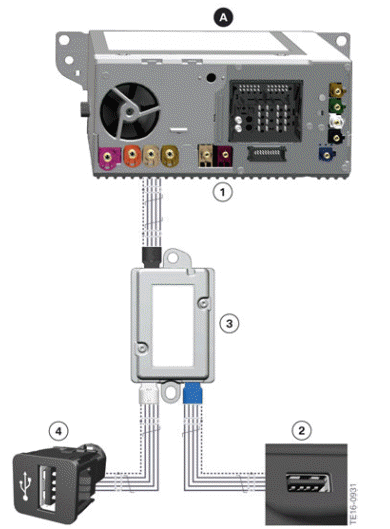

The following graphic provides an overview of the connections for the USB interface:

BMW Apps
G30 Connection of USB interface to the head unit

  1. USB interface for the convenient telephone with extended smartphone connection (OE 6NS) (standard equipment) or telephone system with wireless charging (OE 6NW) (optional equipment), two USB interfaces each with 2.1 A charge current
  1. Headunit High 2 (HU-H2)
  2. USB interface, center console front
  3. USB hub
  4. USB interface in the center console under the center armrest

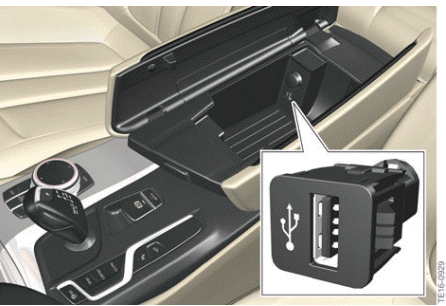

The additional USB interface is installed in the center console under the center armrest.

BMW Apps
G30 USB interface center console

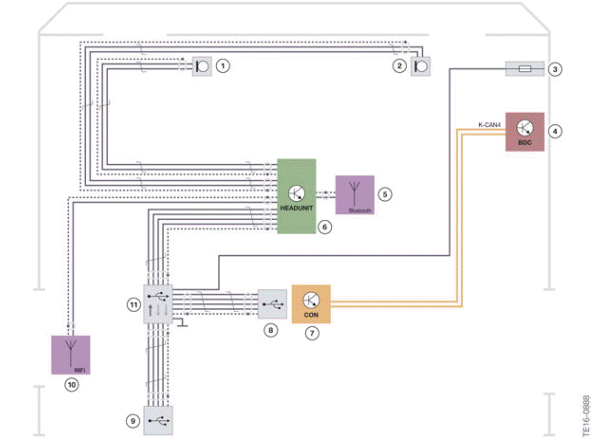

System wiring diagram

BMW Apps
G30 System wiring diagram for convenient telephone with extended smartphone connection

  1. Microphone, left
  2. Microphone, right
  3. Fuse for front right power distribution box
  4. Body Domain Controller (BDC)
  5. Bluetooth antenna
  6. Headunit High 2 (HU-H2)
  7. Controller (CON)
  8. USB interface, center console front
  9. USB interface in the center console under the center armrest
  10. WiFi antenna for vehicle (WiFi)
  11. USB hub
