BMW 5 Series: Driving style analysis
Concept
The function helps develop an especially efficient driving style and to conserve fuel.
For this purpose, the driving style is analyzed.
The assessment is done in various categories and is displayed on the Control Display.
This display will help you adjust your driving style and save some fuel.
General information
The current trip is assessed.
To assist with an efficient driving style, ECO PRO tips are displayed during driving.
The range of the vehicle can be extended by adjusting your driving style.
This gain in range is displayed as a bonus range in the instrument cluster and on the Control Display.
Functional requirement
This function is available in ECO PRO mode.
Calling up ECO PRO Driving style analysis
Via iDrive:
1. "My Vehicle".
2. "Technology in action".
3. "Driving style analysis".
Display on the Control Display
.png)

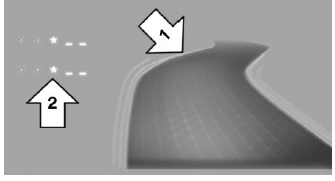

The display of the ECO PRO Driving style analysis consists of a symbolized route and a lookup table.
The road symbolizes the efficiency of the driving style. The more efficient the driving style, the smoother the depicted route becomes, arrow 1.
The table of values contains stars. The more efficient the driving style, the more stars are included in the table, arrow 2, and the faster the bonus range increases.
If, on the other hand, the driving style is inefficient, a more wavy road and a reduced number of stars are displayed.
