BMW 5 Series: Collision Warning

The camera-based collision warning is part of the Active Driving Assistant optional equipment (OE 5AS) in the G30 and is implemented using the KAFAS stereo camera.

The collision warning in the new BMW 5 Series contains the familiar Frontal Collision Warning with City Collision Mitigation and Daytime Pedestrian Protection functions.

In vehicles with the Active Driving Assistant Plus optional equipment (OE 5AT), the cruise control radar sensor is also used to control the collision warning.

Collision Warning

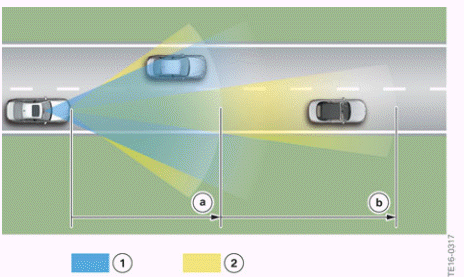

G30 Fusion of the KAFAS stereo camera/ACC radar sensor (diagram of the monitoring ranges)

  1. Close range
  2. Long distance
  1. KAFAS stereo camera detection range
  2. Detection range of the radar sensor

Vehicles with the Active Driving Assistant Plus optional equipment (OE 5AT) have the Active Cruise Control with Stop&Go function integrated as standard.

The system warns the driver in situations where a collision is imminent. The early warning, a visual signal, is issued first to draw the driver's attention to the situation. If the situation becomes more critical, an acute early warning in the form of a visual and acoustic signal is issued. The nature of the warning is such that the driver can still prevent a collision providing he acts quickly.

The collision warning is dependent on the vehicle's own driving speed. The distance measured for the collision warning is significantly lower than the legally required minimum distance. It is therefore the responsibility of the driver to adhere to the legal minimum distance.
