BMW 5 Series: Horn

BMW 5 Series G30 2016-2024 Training Manual / General Vehicle Electronics / Horn

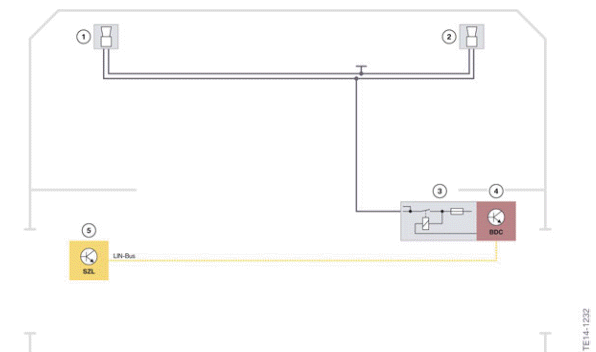

System wiring diagram

System wiring diagram
Horns

  1. Horn, left
  2. Horn, right
  3. Relay in the Body Domain Controller
  4. Body Domain Controller (BDC)
  5. Steering column switch cluster (SZL)

Signal path of horn:

  • When the horn is pressed the signal is received by the steering column switch cluster (SZL).
  • The SZL sends the information via the LIN bus to the Body Domain Controller.
  • The Body Domain Controller evaluates the information and activates the relay for the horn.
