BMW 5 Series: Child restraint systems with tether strap

BMW 5 Series 2016-2024 Owners Manual / Transporting children safely / Child restraint systems with tether strap

Safety information

Warning

If the upper retaining strap is incorrectly used for the child restraint system, the protective effect can be reduced. There is a risk of injury.

Make sure that the upper retaining strap does not run over sharp edges and is not twisted as it passes the upper anchor.

Warning

If the rear backrest is not locked, the protective effect of the child restraint system is limited or there is none. In certain situations, for instance braking maneuvers or in case of an accident, the rear backrest can fold forward. There is a risk of injuries or danger to life. Make sure that the rear backrests are locked.

NOTICE

The anchors for the upper retaining straps of child restraint systems are only provided for these retaining straps. When other objects are mounted, the anchors can be damaged. There is a risk of damage to property. Only mount child restraint systems to the upper anchors.

Anchors

anchor for the upper retainingThe respective symbol shows the anchor for the upper retaining strap. Seats with an upper top tether are marked with this symbol.

It can be found on the rear seat backrest or the rear window shelf.

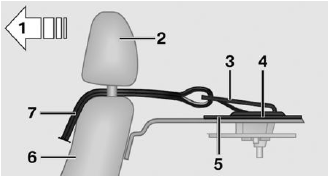

Routing the retaining strap

  1. Direction of travel
  2. Head restraint
  3. Hook for upper retaining strap
  4. Anchor
  5. Rear window shelf
  6. Seat backrest
  7. Upper retaining strap

Attaching the upper retaining strap to the anchor

1. Open the anchor cover.

2. Raise the head restraint.

3. Guide the upper retaining strap between the supports or along both sides of the head restraint to the anchor.

For the middle seat, guide it over or along both sides of the head restraint to the anchor where applicable.

4. Attach the hook of the retaining strap to the anchor.

5. Tighten the retaining strap by pulling it down.

6. Lower and lock head restraints as needed.

Locking the doors and windows in the rear

General information

In certain situations it may be advisable to secure the rear doors and windows, for instance when transporting children.

Doors

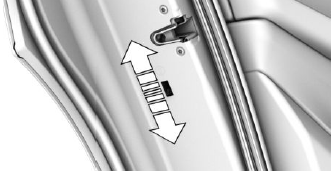

Push the locking lever on the rear doors up.

Push the locking lever on the rear doors up.

The door can now be opened from the outside only.

Safety switch for the rear

door.Press the button on the driver's door.

This locks various functions so that they cannot be operated from the rear. Safety switch.
