BMW 5 Series: Buttons for the central locking system

BMW 5 Series 2016-2025 Owners Manual / Opening and closing / Buttons for the central locking system

General information

In the event of a severe accident, the vehicle is automatically unlocked. The hazard warning system and interior lights come on.

Overview

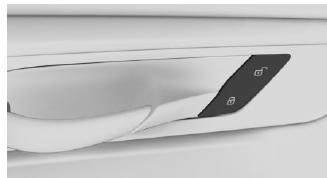

Buttons for the central locking system.

Buttons for the central locking system.

Locking

doorsPress the button with the front doors closed.

  • The fuel filler flap remains unlocked.
  • The vehicle is not secured against theft when locking.

Unlocking

OpeningPress the button.

Opening

  • all thePress the button to unlock all the doors.

    Pull the door opener above the armrest.

  • Front doors: pull the door handle on the door to open the door. The other doors remain locked.
  • Back doors: pull twice on the door handle on the door to be opened; the first time unlocks the door, the second time opens it. The other doors remain locked.
