BMW 5 Series: Vehicle tool kit, Wiper blades

Vehicle tool kit

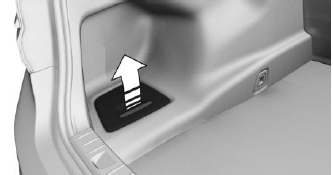

The onboard vehicle tool kit is located in the left

The onboard vehicle tool kit is located in the left storage compartment of the cargo area.

Wiper blades

Safety information

NOTICE

The window may sustain damage if the wiper falls onto it without the wiper blade installed.

There is a risk of damage to property. Hold the wiper firmly when changing the wiper blade. Do not fold or switch on the wiper without a wiper blade installed.

NOTICE

Folded-away wipers can be jammed when the hood is opened. There is a risk of damage to property. Make sure that the wipers with the wiper blades mounted are folded down onto the windshield before opening the hood.

Replacing

1. To change the wiper blades, fold up the wiper arms.

2. Lift the wiper all the way off of the windshield.

3. Press the button, arrow 1, and pull out the

3. Press the button, arrow 1, and pull out the wiper blade, arrow 2.

4. Insert the new wiper blade and press it on until

4. Insert the new wiper blade and press it on until it you hear it snap into the holder.

5. Fold down the wipers.
